• Model NO.：TH-KT2390D
• Power Output：90 Watts
• LEDs：6PCS*15W ETI
• Lumen：6480lm
• Optional Beam：Spot,Flood,Combo
• Optional Bracket：Bottom-Mounting,Side-Mounting
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Alum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：15",37.5cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 34*24*36cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-KT2390D Power Output 90 Watts LEDs 6PCS*15W ETI Lumen 6480lm Optional Beam Spot/Flood/Combo Optional Bracket Bottom-Mounting/Side-Mounting Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Alum Alloy Bracket Waterproof Rate IP68 Length Size 15"/37.5cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 34*24*36cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

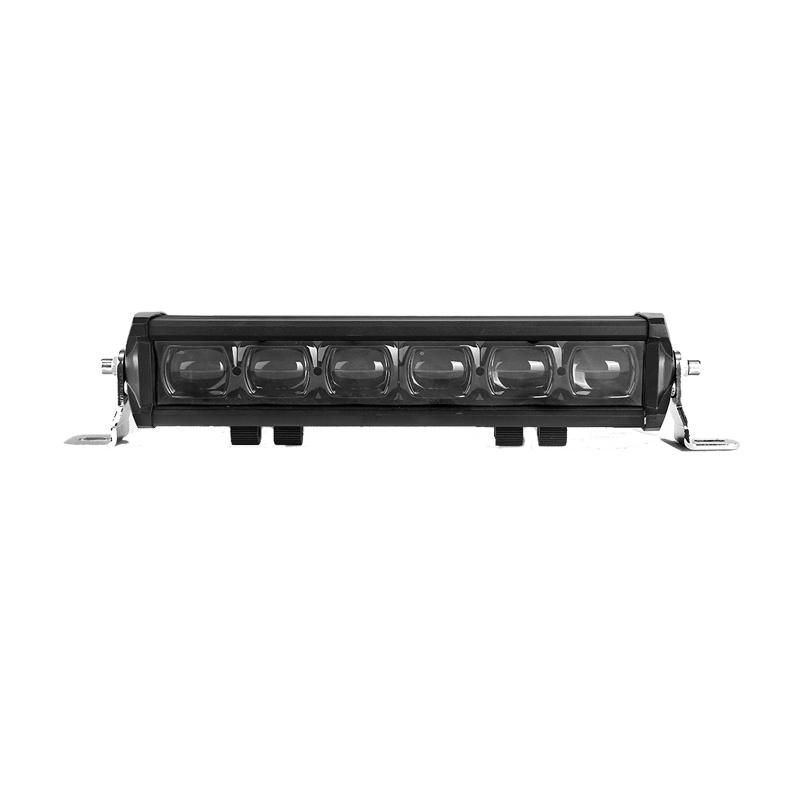

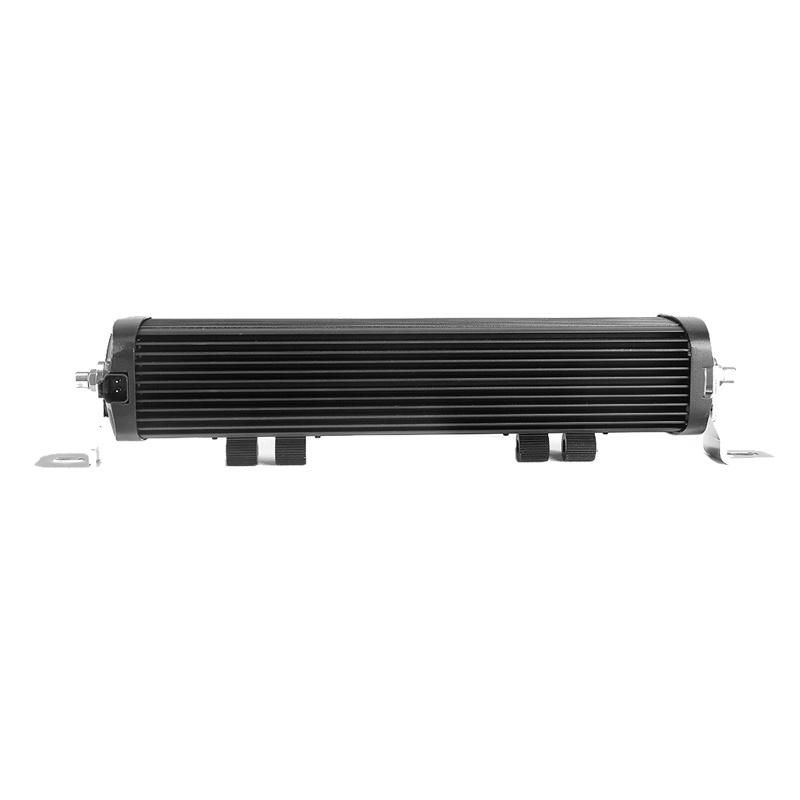

90W 4x4 Projector Lens LED Single Bar Light

LED Offroad Light Bar for Jeep Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Round projectors for spot beam, rectangular projectors for flood beam
5. Bottom-mounting/side-mounting bracket for option

The Specification of Single Bar:

ITEM	DESCRIPTION
Model Number	TH-KT2390D
Power Output	90 Watts
Operating Voltage	DC9~60V
LED Chip	6pcs*15W ETI
Lumens	6480lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood/combo
Housing Material	Diecast aluminum housing
Mounting Bracket	alum alloy bracket
Optional Bracket	Bottom-mounting/side-mounting bracket
Len Materia	polycarboante lens
Housing item	Straight Single-Row designed
Length Size	15"/37.5cm
Life Span	Above 50,000 hours
Wire Length	60cm
Warranty	12 months

LED Offroad Light Bar for Jeep Qualifications:



LED Light Bar K Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-KT2345D	8"/21cm	45W	15W ETI	3pcs	3240lm	Spot/Flood/Combo
TH-KT2390D	15"/37.5cm	90W	15W ETI	6pcs	6480lm	Spot/Flood/Combo
TH-KT23135D	21"/54cm	135W	15W ETI	9pcs	9720lm	Spot/Flood/Combo
TH-KT23180D	28"/70.5cm	180W	15W ETI	12pcs	12960lm	Spot/Flood/Combo
TH-KT23225D	34"/87cm	225W	15W ETI	15pcs	16200lm	Spot/Flood/Combo
TH-KT23270D	41"/103.5cm	270W	15W ETI	18pcs	19440lm	Spot/Flood/Combo
TH-KT23315D	47"/120cm	315W	15W ETI	21pcs	22680lm	Spot/Flood/Combo

High Intensity LED Detail Image:



Auto LED Bar Light Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED Bar Light, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package High Power LED Light Bar:

Name	piece	G.W	Size
One piece	1pcs	0.3kgs	23*20*11CM
One carton	4pcs/ctn	15kgs	34*24*36CM


Shipping for Single Bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs LED Offroad Light Bar for Jeep & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your LED Light Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM High Intensity LED orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Auto LED Bar Light orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the LED Bar Light MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is the High Power LED Light Bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Single Bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
