• Model NO.：TH-KT23180D
• Power Output：180 Watts
• LEDs：12PCS*15W ETI
• Lumen：12960lm
• Optional Beam：Spot,Flood,Combo
• Optional Bracket：Bottom-Mounting,Side-Mounting
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Alum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：28",70.5cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 34*24*36cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-KT23180D Power Output 180 Watts LEDs 12PCS*15W ETI Lumen 12960lm Optional Beam Spot/Flood/Combo Optional Bracket Bottom-Mounting/Side-Mounting Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Alum Alloy Bracket Waterproof Rate IP68 Length Size 28"/70.5cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 34*24*36cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

Straight 180W LED Driving Light Bar for SUV

Aluminum LED Light Bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Round projectors for spot beam, rectangular projectors for flood beam
5. Bottom-mounting/side-mounting bracket for option

The Specification of high quality led light bar:

ITEM	DESCRIPTION
Model Number	TH-KT23180D
Power Output	180 Watts
Operating Voltage	DC9~60V
LED Chip	12pcs*15W ETI
Lumens	12960lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood/combo
Housing Material	Diecast aluminum housing
Mounting Bracket	alum alloy bracket
Optional Bracket	Bottom-mounting/side-mounting bracket
Len Materia	polycarboante lens
Housing item	Straight Single-Row designed
Length Size	28"/70.5cm
Life Span	Above 50,000 hours
Wire Length	60cm
Warranty	12 months

aluminum led light bar Qualifications:



led automotive light bar K Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-KT2345D	8"/21cm	45W	15W ETI	3pcs	3240lm	Spot/Flood/Combo
TH-KT2390D	15"/37.5cm	90W	15W ETI	6pcs	6480lm	Spot/Flood/Combo
TH-KT23135D	21"/54cm	135W	15W ETI	9pcs	9720lm	Spot/Flood/Combo
TH-KT23180D	28"/70.5cm	180W	15W ETI	12pcs	12960lm	Spot/Flood/Combo
TH-KT23225D	34"/87cm	225W	15W ETI	15pcs	16200lm	Spot/Flood/Combo
TH-KT23270D	41"/103.5cm	270W	15W ETI	18pcs	19440lm	Spot/Flood/Combo
TH-KT23315D	47"/120cm	315W	15W ETI	21pcs	22680lm	Spot/Flood/Combo

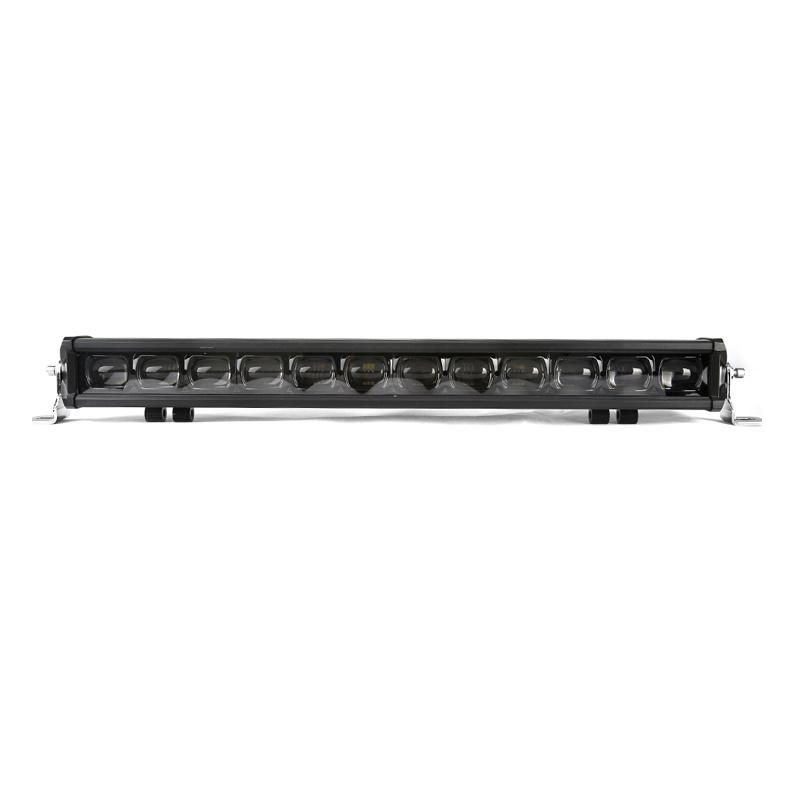

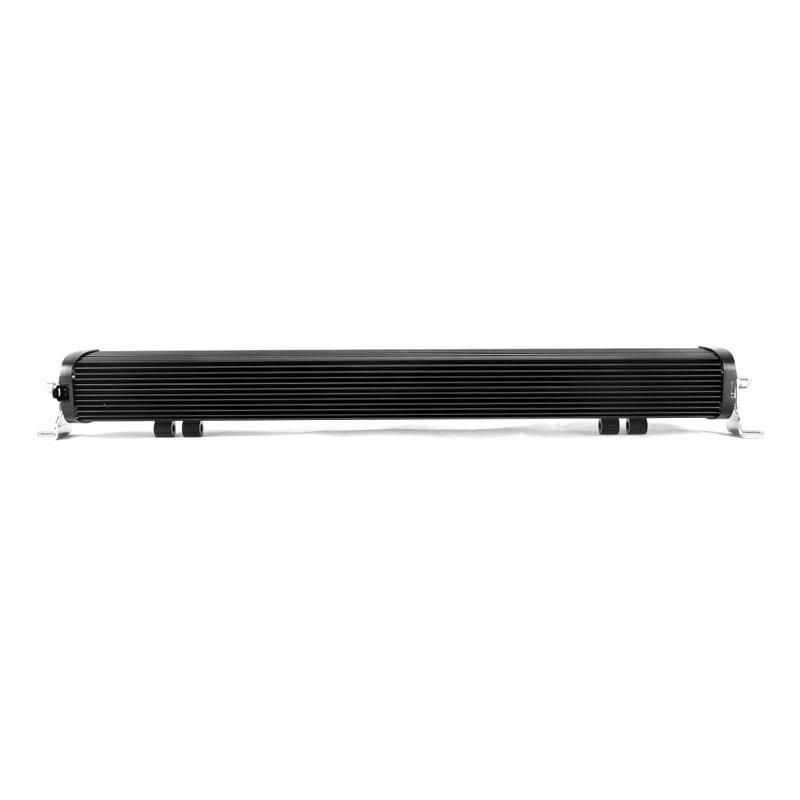

Led Single Bar Detail Image:



4x4 led bar light Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Single Bar, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package LED Offroad Light Bar for Jeep:

Name	piece	G.W	Size
One piece	1pcs	0.3kgs	23*20*11CM
One carton	4pcs/ctn	15kgs	34*24*36CM


Shipping for high quality led light bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs aluminum led light bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your led automotive light bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM Led Single Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM 4x4 led bar light orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Single Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is the LED Offroad Light Bar for Jeep lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place high quality led light bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
