• Model NO.：TL-277
• Resistance：Waterproof
• Certification：E-mark
• Transport Package：Blister, Plain Box
• Specification：272*100* 27.4 mm
• Trademark：Tough
• Origin：China
• HS Code：8512201000
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. TL-277 Resistance Waterproof Certification E-mark Transport Package Blister, Plain Box Specification 272*100* 27.4 mm Trademark Tough Origin China HS Code 8512201000 Production Capacity 500000PCS/Year

Product Description

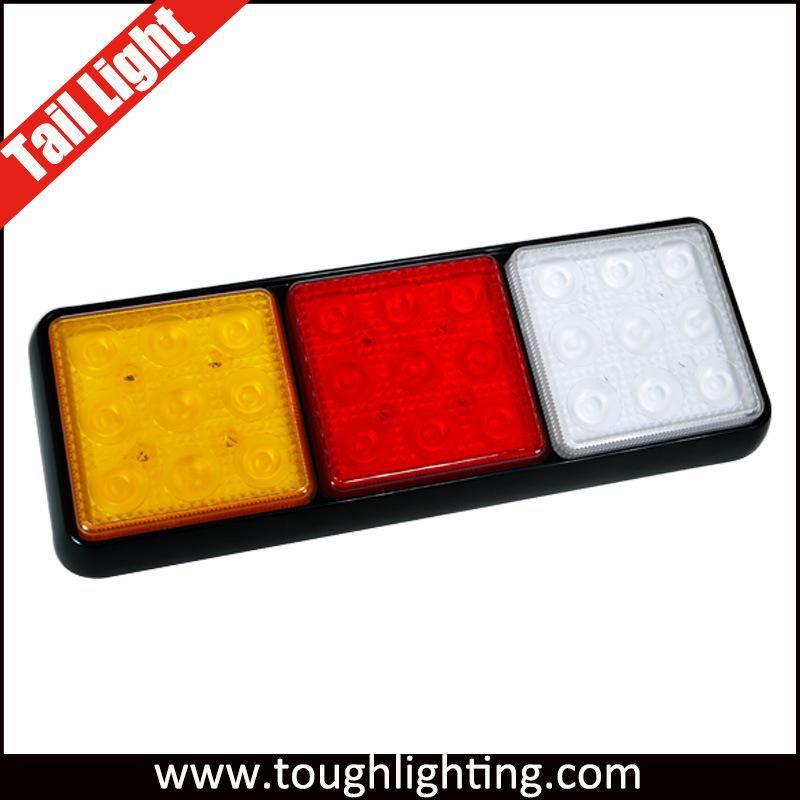

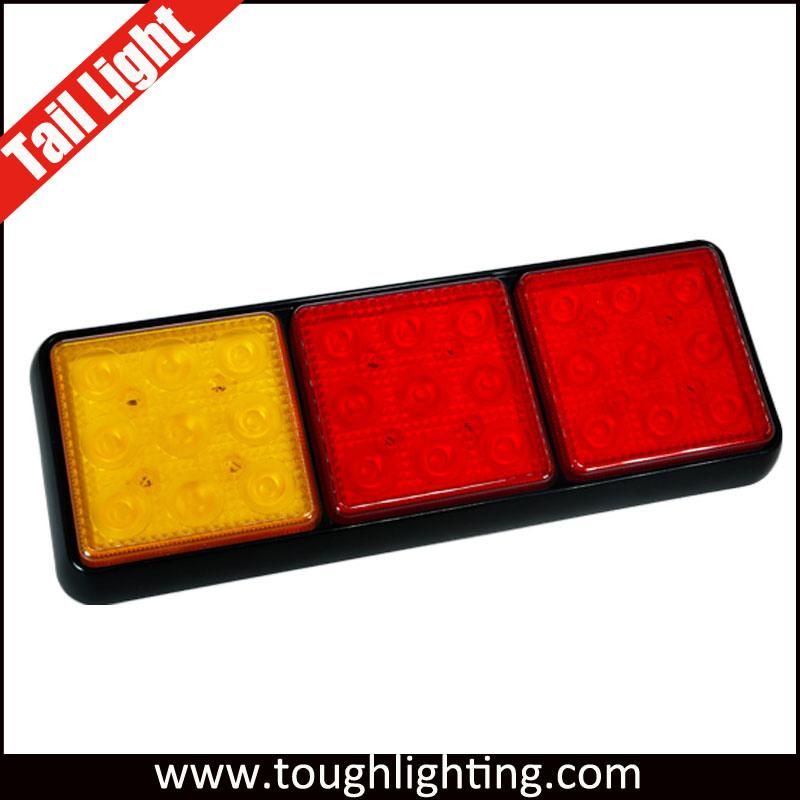

E-mark Certificated 10-30V 3 Pods LED rear combination light for truck trailers
Description:

Choosing for your vehicles Tail Lighting systems is an easy one if you demand a long service life with sturdy design and easy installing on your vehicle for all kinds of rear light requirements.

The quality & stamina of our LED Rear Lamps results not only in reduced energy consumption, large financial savings but also most importantly reduced down times due to bulb change.

• 12-24 Volts

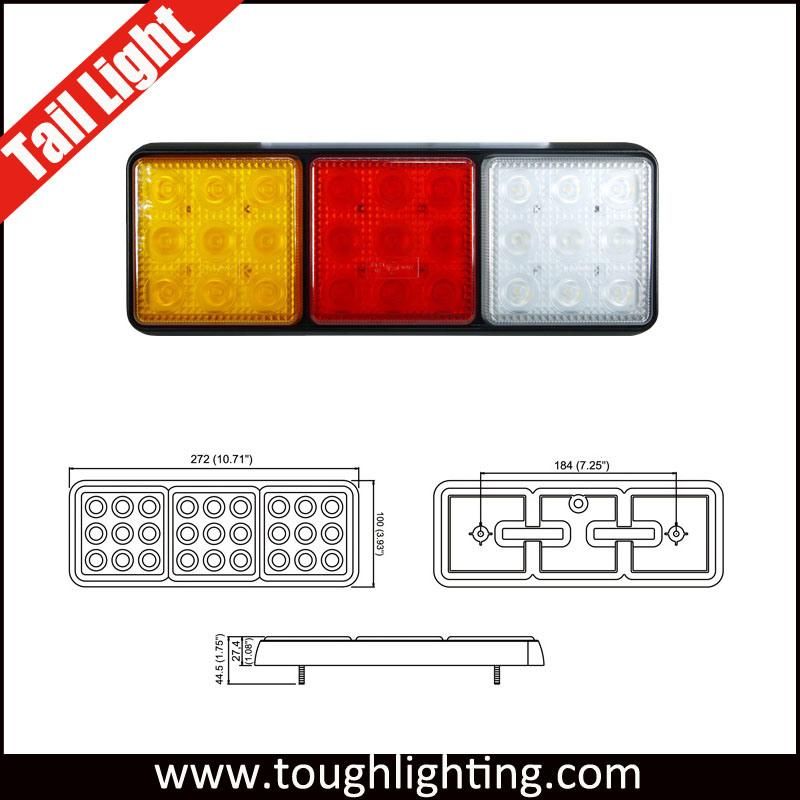

• Size: 272*100* 27.4 mm
• Stop / Tail / Indicator / Reverse
• 16SMDs
• Double Blister packing
• E Mark Approved
• CE

Specifications:

APPLICATIONS:	Tail Lighting systems	LED BRAND:	SMD
LED TYPE:	1W  LEDs	WATTAGE:	N/A
BRIGHTNESS:	N/A	LED COLOR:	White, Red, Amber
BEAM PATTERN :	N/A	IP RATING:	IP65
OPERATING VOLTAGE:	9-32VDC	OPERATING TEMPERATURE:	-20~+50°C
SIZE:	10.71 inch	CERTIFICATES:	Emark, CE, Rohs
LENS:	Durable PC Lens	BODY MATERIAL:	PC
BRACKET MATERIAL:	N/A	LIFESPAN:	50,000+ Hr
CONNECTOR TYPE:	Pigtail	SHAPE:	Rectangle



FAQ:

1, What is the shipping cost for my order?

It depends on your quantity and your address. For sample order, usually it was about USD6/KG;  For bulk order, ship by sea will be cost-effective.

2, When will my order ship?

For sample order, usually we ship in 3-5 work days.

For bulk order, usually we deliver goods in 7-11 work days depends on your quantity and requirements.

3, What is the warranty for the products?

Unless otherwise noted, all products are warranted for 2 years from the date of purchase, select products have extended warranty periods.

4, Can you accept OEM/ODM, Dstribution, Drop Shipping?

Yes, we can accept OEM/ODM, Distribution, Drop Shipping. Pls Send Us Inquiry for details.

5, What is your payment terms?

We can accept Paypal. Western Union, TT(Telegraphic Transfer), LC.

6, How can I start my order with you?

Send us an inquiry from contact page or email us directly, then our sales department with assist you in your ordering.
