• Model NO.：R075
• Origin：China

Basic Info.

Model NO. R075 Origin China

Product Description

u[Superb Brightness]Each led tail light is built-in 23 led bulbs, which brilliantly illuminate and cut through darkness and low-visibility conditions to light up the rear of your vehicle or trailer. Stay safe on the road even in foggy or stormy weather.

u[ IP65 Waterproof ] Free to Use in Heavy Rain. Keep Your Vehicle Well-Marked and Safety Ensured. Epoxy encapsulated electronics prevents damage from water and corrosion.

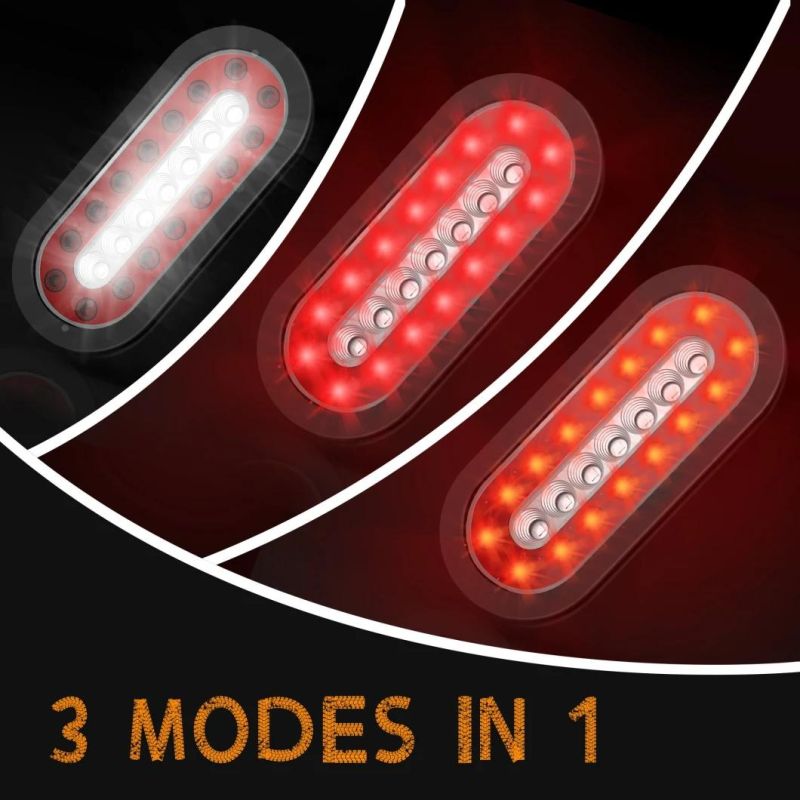

u[Cost Effective]The waterproof trailer lights are designed for multi-function use as a brake or stop light, turn signal and tail light. These led lights draw less current, generate less heat and are brighter than an incandescent bulb.

u[Easy to Install]The trailer light set is extremely easy to mount with 4 wires connection system for ground, reverse, brake light and running light: black wire - ground , red wire - brake light , yellow wire - reverse/backup light , white wire - running/tail light.

u[Wide Compatibility]These 12V led brake lights are universally suitable for most vehicles, such as trucks, tractors, semi-trailer, vans, RVs, buses, boats, emergency vehicles, campers, short trailers and extended trailers.

Specification(approx):
Material: AS, Rubber
LED Color: Red, Yellow
Voltage: 12V DC
Quantity: 23 LED (Inner Yellow 7 LED + Outer Red 16 LED)
Light Size: 160 x 58 x 28mm (6.3 x 2.3 x 1.1inches)
Size with Grommet: 187 x 80 x 28mm (7.4 x 3.1 x1.1 inches)
Wire length: 150mm (6inch)
Waterproof Rating: IP 65

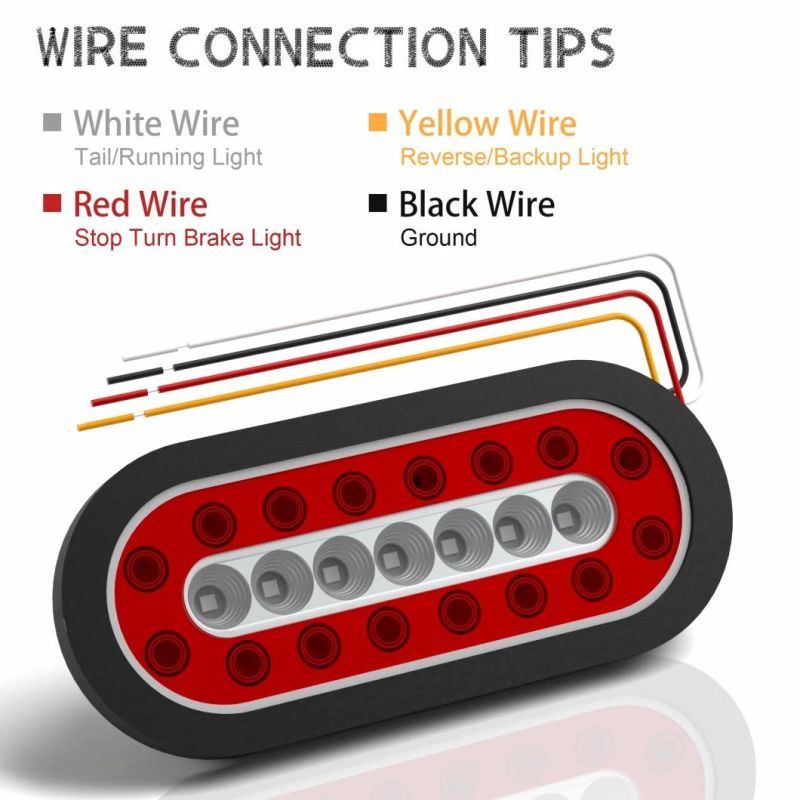

Wire Connection Tips:
Black Wire--Ground
Yellow Wire--Reverse/Backup Light
Red Wire--Brake Light
White Wire-- Tail/Running Light
Black + Red - high brightness, 100% brightness
Black + White - low brightness, 50% brightness
Package Included
1 * LED Trailer Tail Lights
