• Model NO.：X3-H7
• Resistance：Waterproof
• Certification：CCC, E-mark
• Name：X3 H7 LED Headlight
• Lumen：6000lm
• Power：50W
• Housing Material：Aviation Aluminum
• Operation Temp：-40deg~+85deg
• Lifespan：50000hours
• Cooling Style：Fanless
• Available Base：H4.H13.9004.9007,H1.H3.H7.H8.H9. H11.9005.9006. 90
• Color Temperature：6000-6500K
• Style：H7
• Transport Package：Carton Box
• Specification：CARTON BOX
• Trademark：LIGHTECH
• Origin：China
• HS Code：85122010
• Production Capacity：10000sets,Week

Basic Info.

Model NO. X3-H7 Resistance Waterproof Certification CCC, E-mark Name X3 H7 LED Headlight Lumen 6000lm Power 50W Housing Material Aviation Aluminum Operation Temp -40deg~+85deg Lifespan 50000hours Cooling Style Fanless Available Base H4.H13.9004.9007,H1.H3.H7.H8.H9. H11.9005.9006. 90 Color Temperature 6000-6500K Style H7 Transport Package Carton Box Specification CARTON BOX Trademark LIGHTECH Origin China HS Code 85122010 Production Capacity 10000sets/Week

Product Description

X3 LED headlight kit for car and motorcycles 50w DC 9-32V led car headlight H7

Model	X3 H7  led headlight
Brand	Lightech
Chip	ZES
Beam Angle	360
Voltage	12v-24v
Lifespan	50000hours
Warranty	12months
Input(A)	H:2.5±0.2A
Material	Aviation aluminum
Lumen	8000LM
Color Temperate	6000-6500k
Size	H4.H13.9004.9007,H1.H3.H7.H8.H9. H11.9005.9006. 9012.H16(5202)

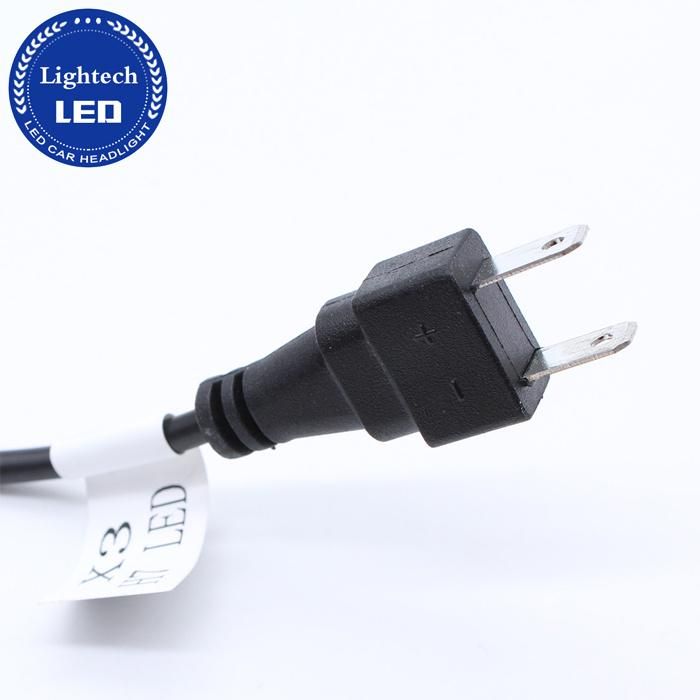

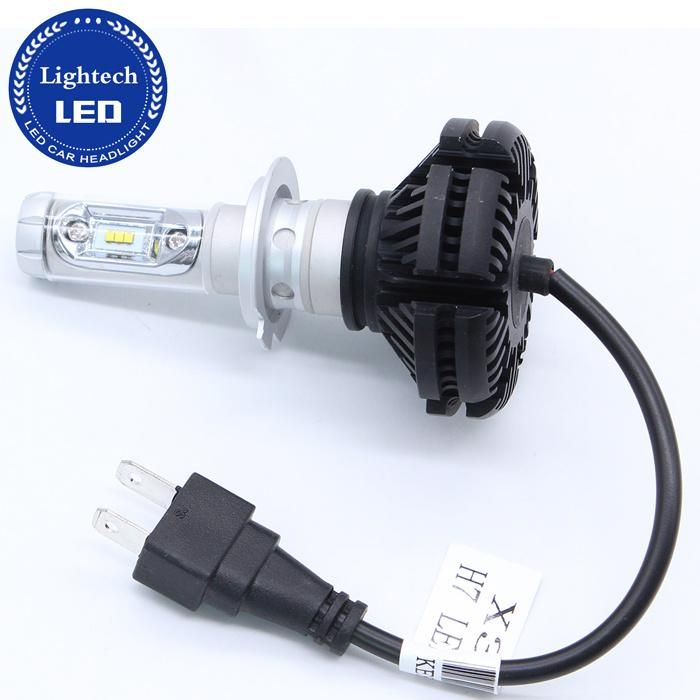

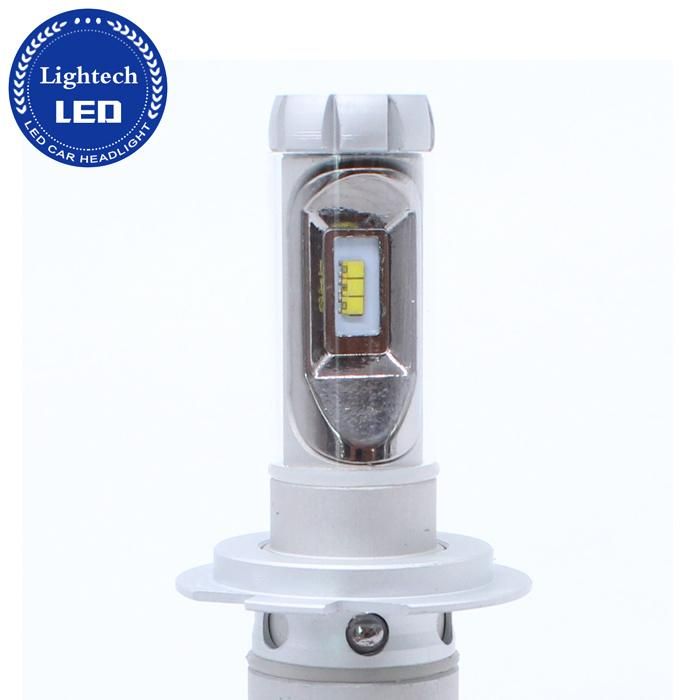

Photos show:





Features & Advantages Of LED Headlight:
1.Energy Saving
>>>>60% Lower Power Consumption than Halogen and 30% than HID
2. Long life Span
>>>>Qualified LED automotive headlight life will never less than 30000Hours
3. Green Light Source
>>>>There is no UV and IR in the spectrum, and Hg free.
4. Microsecond Boot
>>>>LED lighting light up takes only microsecond, high low beam switching without delay
5. Original Car Battery Friendly
>>>>Instant start no strong currents impact, effectively protect the car's battery , improving battery life by more than 30%.
6. Low-voltage direct current can drive, small load, weak interference, good adaptability.
7. Complete Kit:
>>>>No Other Ballast/Driver Required.
8. Easy installation, Plug and Play, NO modification required

Factory show:

FAQ:

1. What is the advantage of Lightech products?

1. Quite bright
2. Mature system
3. Hight quality material and component
4. Strict quality checking system

1. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

1. Can you produce according to our samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

1. Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

1. What is the Warranty?

We warranty the products for 12months to 18months

1. How do you make our business long-term and good relationship?

1) We keep good quality and competitive price to ensure our customers benefit.
 2) We respect every customer as our friend and we sincerely do business and make friends with them, always trying to make a win-win result.
3) Distributorship: We offer distributorship for your unique design and some of our current models.
4) Confidentiality: We protect your sales area, ideas of design and all your private information.

1. How to installed the led headlight?

1. Led headlight kit installations start with preparation. You have to make sure the vehicle is off the battery is disconnected, and the engine is cooled down. This is will ensure your safety.
   2) Now we can move to the actual installation. If you have a single low beam kit, locate your low beam dust cover on the back of your headlight assembly. Remove the cover by twisting it counter clock wise. This should unscrew the dust cover giving you access to the bulb. Make sure you unplug the bulb from the wiring harness before you attempt to remove it. Now you can continue to place the LED bulb in place of the halogen bulb you just removed, just make sure you don't touch the glass part of the bulb. Customers can contact with us for installation detail for any bulbs size like 9007/9004 80W installation with more complicated steps.
   3) Installing the ballast/driver. First thing is to find a good location to place the ballast, somewhere close enough to able to reach the bulb with the wiring plugs. Once you have the ballast secured then you can proceed to plug the wiring to the bulb, and plug the old harness to the ballast.
   4) In Led headlight kit installation is to double check all the wiring plugs to make sure everything snapped into place correctly. Also double check to make sure that the ballast/driver is securely attached to the vehicle. Now you can reconnect your battery and test out your new LED upgrade.
