• Model NO.：TH-BT03234C
• Power Output：234 Watts
• LEDs：78PCS*3W CREE
• Lumen：15600lm
• Optional Beam：Spot,Flood,Combo
• Bracket：Thick Bottom-Mounting Brackets with Sliding Blocks
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing,Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：36",91.1cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 120*31*27cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT03234C Power Output 234 Watts LEDs 78PCS*3W CREE Lumen 15600lm Optional Beam Spot/Flood/Combo Bracket Thick Bottom-Mounting Brackets with Sliding Blocks Len Materia Polycarboante Lens Materia Diecast Aluminum Housing,Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 36"/91.1cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 120*31*27cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

Powerful 234W LED Automobile Strip Light Lighting Bar

super bright led light bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Thick bottom-mounting brackets with sliding blocks
5. Straight Double-Row designed


The Specification of car roof top light bar:

ITEM	DESCRIPTION
Model Number	TH-BT03234C
Power Output	234 Watts
Operating Voltage	DC9~60V
LED Chip	78PCS*3W CREE
Lumens	15600lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/Flood/Combo
Housing Material	Diecast aluminum housing
Mounting Bracket	aluminum alloy bracket
Bracket	Thick bottom-mounting brackets with sliding blocks
Len Materia	polycarboante lens
Housing item	Straight Double-Row designed
Length Size	36"/91.1cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Offroad LED Lighting Bar Qualifications:

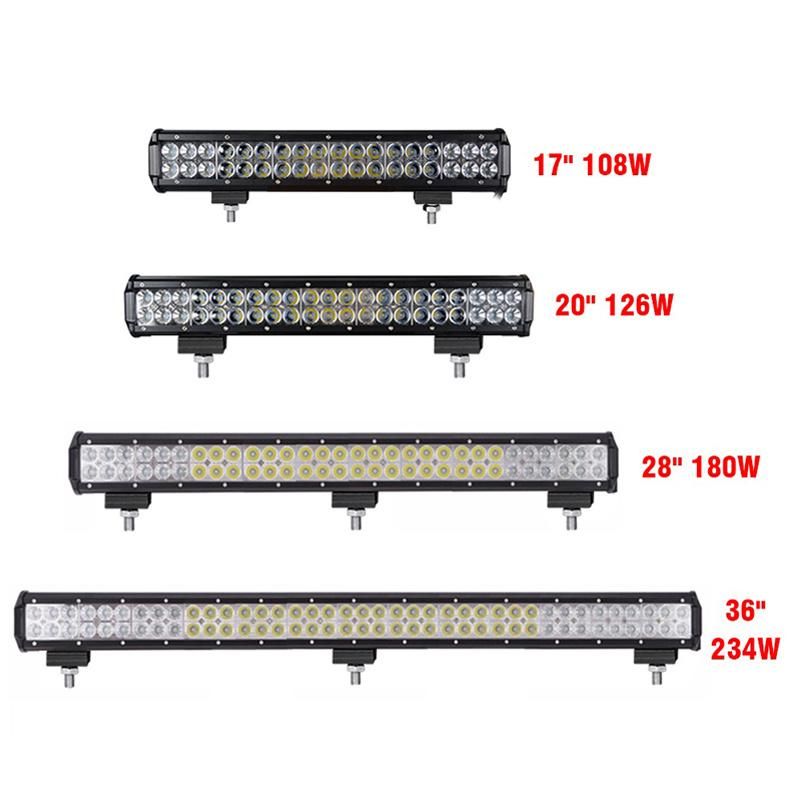

High Brightness LED B Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0318C	4"/9.5cm	18W	3W Cree	6pcs	1200lm	Spot/Flood
TH-BT0336C	6"/16.3cm	36W	3W Cree	12pcs	2400lm	Spot/Flood
TH-BT0354C	9"/23.1cm	54W	3W Cree	18pcs	3600lm	Spot/Flood/Combo
TH-BT0372C	12"/29.9cm	72W	3W Cree	24pcs	4800lm	Spot/Flood/Combo
TH-BT0390C	14"/36.7cm	90W	3W Cree	30pcs	6000lm	Spot/Flood/Combo
TH-BT03108C	17"/43.5cm	108W	3W Cree	36pcs	7200lm	Spot/Flood/Combo
TH-BT03126C	20"/50.3cm	126W	3W Cree	42pcs	8400lm	Spot/Flood/Combo
TH-BT03144C	22"/57.1cm	144W	3W Cree	48pcs	9600lm	Spot/Flood/Combo
TH-BT03198C	31"/77.5cm	198W	3W Cree	66pcs	13200lm	Spot/Flood/Combo
TH-BT03234C	36"/91.1cm	234W	3W Cree	78pcs	15600lm	Spot/Flood/Combo
TH-BT03288C	44"/111.5cm	288W	3W Cree	96pcs	19200lm	Spot/Flood/Combo

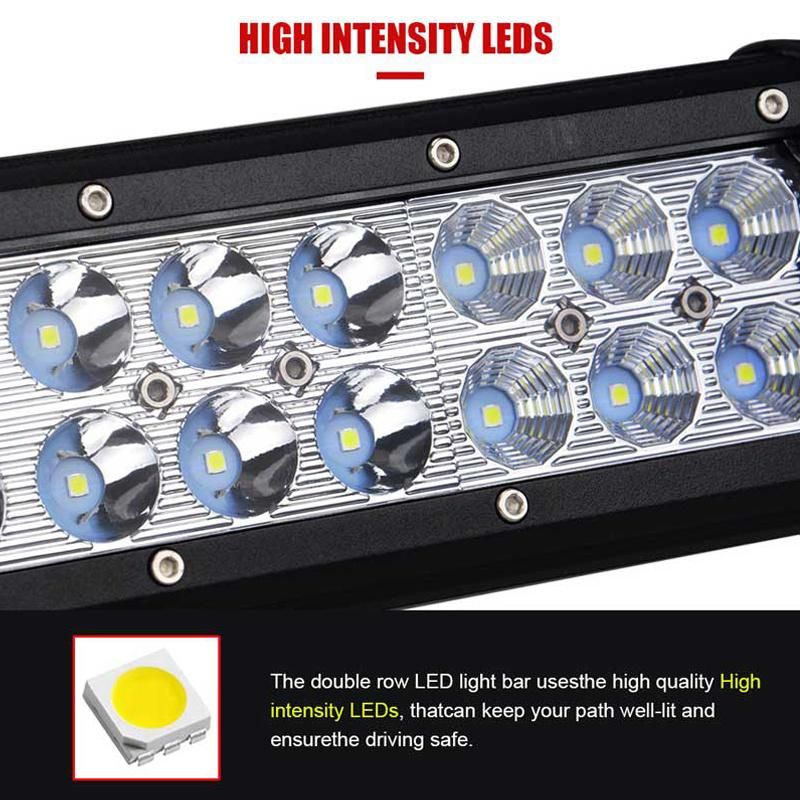

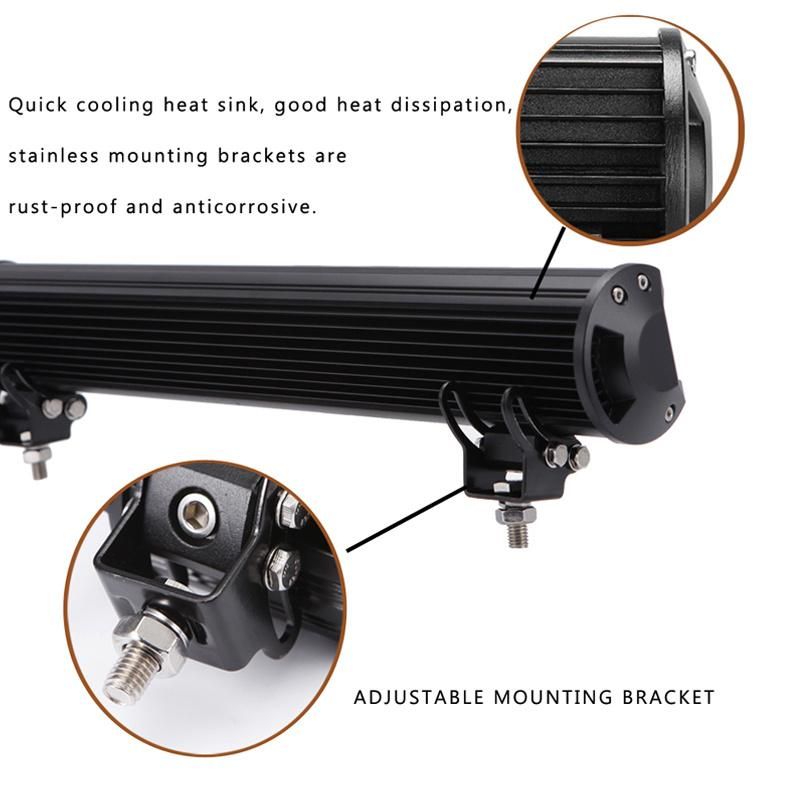

24V LED Lighting Bar Detail Image:




Car LED Lighting Bar Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of off Road Bar Lighting and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package super bright led light bar:

Name	piece	G.W	Size
One piece	1pcs	3.5kgs	23*20*11CM
One carton	4pcs/ctn	14kgs	120*31*27CM


Shipping for car roof top light bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs Offroad LED Lighting Bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your High Brightness LED after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM 24V LED Lighting Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Car LED Lighting Bar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the off Road Bar Lighting MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is super bright led light bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place car roof top light bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
