• Model NO.：k5-9005
• Resistance：Shock-Resistant
• Certification：CCC
• Name：K5 Mini LED Headlight
• Lumen：8000lm
• Power：60W
• Cooling Style：Fan
• Available Base：H4.H13.9004.9007, H1.H3.H7.H8.H9. H11.9005.9006. 90
• Transport Package：Carton
• Specification：62X28X34
• Trademark：LIGHTECH
• Origin：China
• HS Code：851020000
• Production Capacity：120000sets Per Months

Basic Info.

Model NO. k5-9005 Resistance Shock-Resistant Certification CCC Name K5 Mini LED Headlight Lumen 8000lm Power 60W Cooling Style Fan Available Base H4.H13.9004.9007, H1.H3.H7.H8.H9. H11.9005.9006. 90 Transport Package Carton Specification 62X28X34 Trademark LIGHTECH Origin China HS Code 851020000 Production Capacity 120000sets Per Months

Product Description

Wholesale Auto 880 Waterproof Lamp H1 H3 H11 9005 9006 H7 C6 H4 Car Led Headlight

Model	K5 led headlight
Brand	Lightech
Chip	COB
Beam Angle	360
Voltage	12v-24v
Lifespan	50000hours
Warranty	12months
Input(A)	H:2.5±0.2A
Material	Aviation aluminum
Lumen	4000LM
Color Temperate	6000-6500k
Size	H4.H13.9004.9007,H1.H3.H7.H8.H9. H11.9005.9006. 9012.H16(5202)

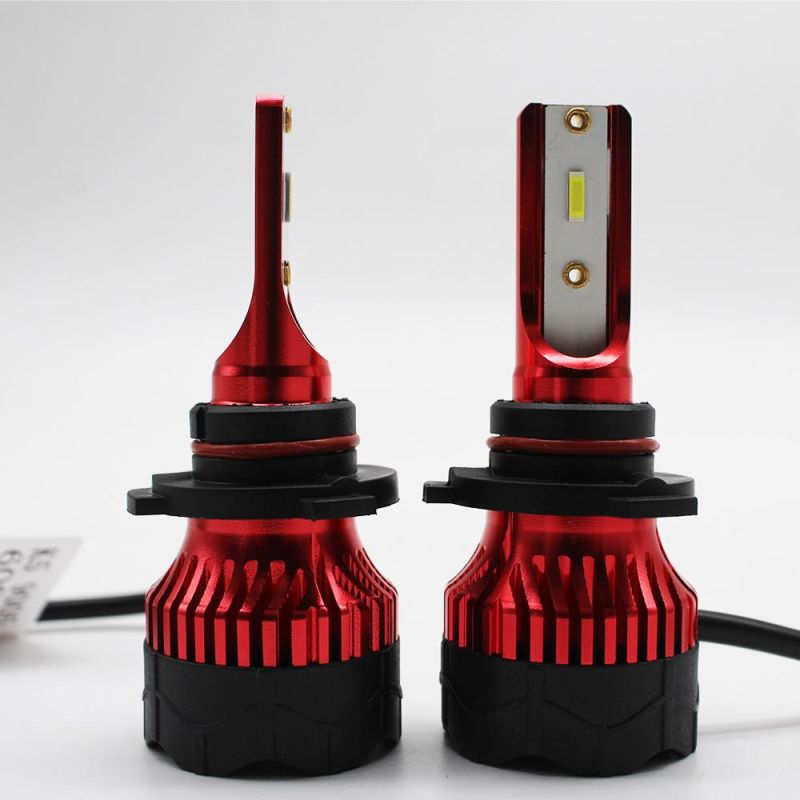

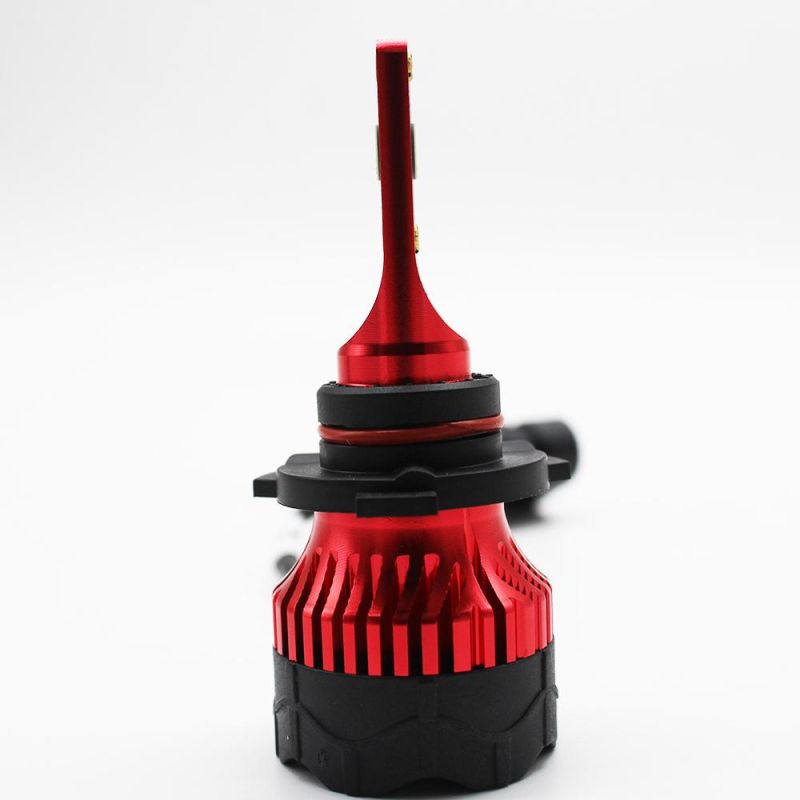

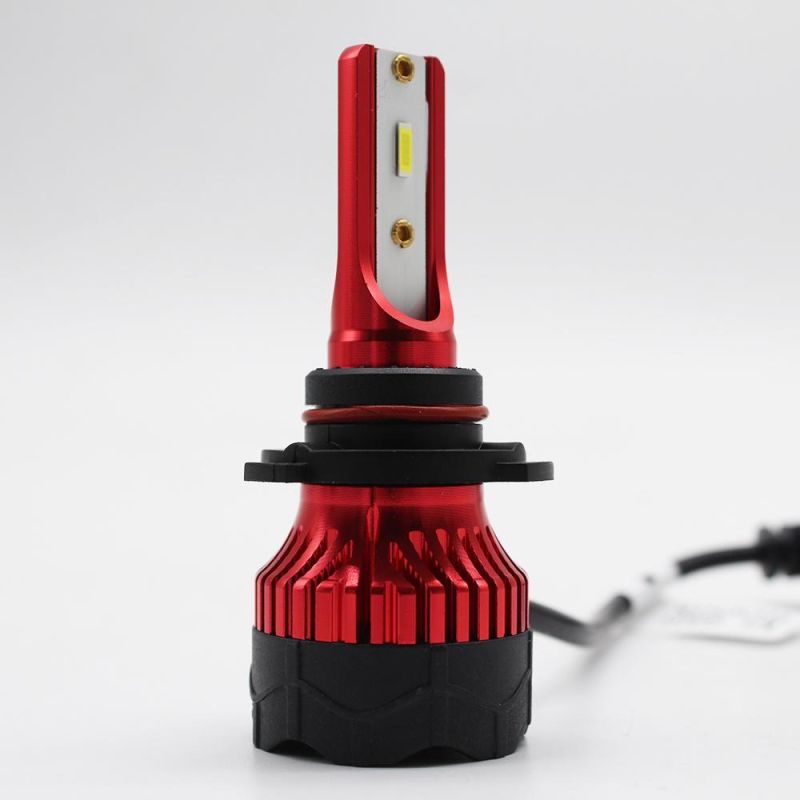

Photos show:




Features & Advantages Of LED Headlight:
1.Energy Saving
>>>>60% Lower Power Consumption than Halogen and 30% than HID
2. Long life Span
>>>>Qualified LED automotive headlight life will never less than 30000Hours
3. Green Light Source
>>>>There is no UV and IR in the spectrum, and Hg free.
4. Microsecond Boot
>>>>LED lighting light up takes only microsecond, high low beam switching without delay
5. Original Car Battery Friendly
>>>>Instant start no strong currents impact, effectively protect the car's battery , improving battery life by more than 30%.
6. Low-voltage direct current can drive, small load, weak interference, good adaptability.
7. Complete Kit:
>>>>No Other Ballast/Driver Required.
8. Easy installation, Plug and Play, NO modification required

Factory show:

FAQ:

1. What is the advantage of Lightech products?

1. Quite bright
2. Mature system
3. Hight quality material and component
4. Strict quality checking system

1. What is your sample policy?

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

1. Can you produce according to our samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

1. Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

1. What is the Warranty?

We warranty the products for 12months to 18months

1. How do you make our business long-term and good relationship?

1) We keep good quality and competitive price to ensure our customers benefit.
 2) We respect every customer as our friend and we sincerely do business and make friends with them, always trying to make a win-win result.
3) Distributorship: We offer distributorship for your unique design and some of our current models.
4) Confidentiality: We protect your sales area, ideas of design and all your private information.

1. How to installed the led headlight?

1. Led headlight kit installations start with preparation. You have to make sure the vehicle is off the battery is disconnected, and the engine is cooled down. This is will ensure your safety.
   2) Now we can move to the actual installation. If you have a single low beam kit, locate your low beam dust cover on the back of your headlight assembly. Remove the cover by twisting it counter clock wise. This should unscrew the dust cover giving you access to the bulb. Make sure you unplug the bulb from the wiring harness before you attempt to remove it. Now you can continue to place the LED bulb in place of the halogen bulb you just removed, just make sure you don't touch the glass part of the bulb. Customers can contact with us for installation detail for any bulbs size like 9007/9004 80W installation with more complicated steps.
   3) Installing the ballast/driver. First thing is to find a good location to place the ballast, somewhere close enough to able to reach the bulb with the wiring plugs. Once you have the ballast secured then you can proceed to plug the wiring to the bulb, and plug the old harness to the ballast.
   4) In Led headlight kit installation is to double check all the wiring plugs to make sure everything snapped into place correctly. Also double check to make sure that the ballast/driver is securely attached to the vehicle. Now you can reconnect your battery and test out your new LED upgrade.
