• Model NO.：LT117
• Resistance：Waterproof
• Certification：CCC, E-mark, DOT
• Application：Truck Trailer Bus Heavy Truck Light Trucks
• Life Time：30000hours
• Warranty：1 Year
• Install Method：Screw
• Waterproof：IP66
• Name：Tail Light Assembly Truck LED Lights Tail Light
• Transport Package：PP Bag, Carton, Pallet
• Specification：dia123mm
• Trademark：K-Lite
• Origin：Zhejiang China
• HS Code：8501200000
• Production Capacity：10000PCS,Week

Basic Info.

Model NO. LT117 Resistance Waterproof Certification CCC, E-mark, DOT Application Truck Trailer Bus Heavy Truck Light Trucks Life Time 30000hours Warranty 1 Year Install Method Screw Waterproof IP66 Name Tail Light Assembly Truck LED Lights Tail Light Transport Package PP Bag, Carton, Pallet Specification dia123mm Trademark K-Lite Origin Zhejiang China HS Code 8501200000 Production Capacity 10000PCS/Week

Product Description

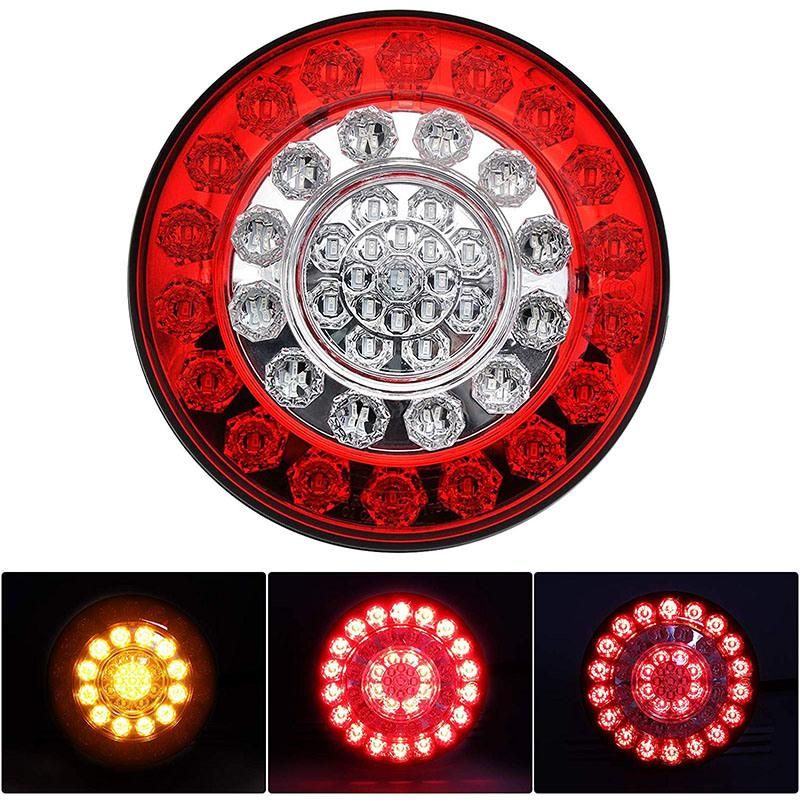

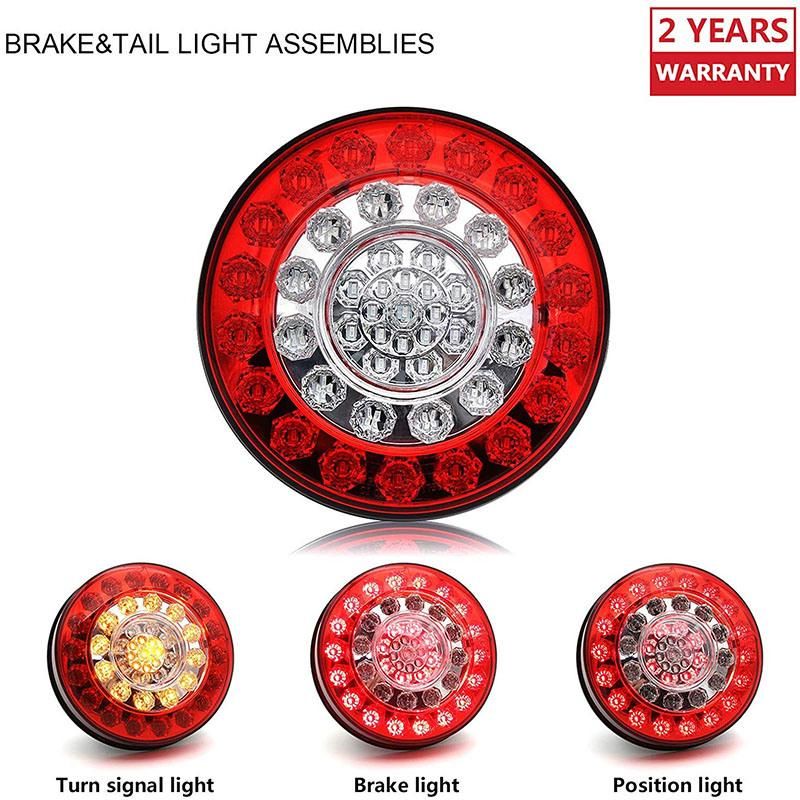

Trailer Tail/Stop/Turn Signal Rear Lamp With E4/ADR/CCC Certification (LT-117)


Function	Tail+Stop+Indicator
Certificate	EMARK  ADR  CCC
Material	Lens:PMMA,Base:ABS

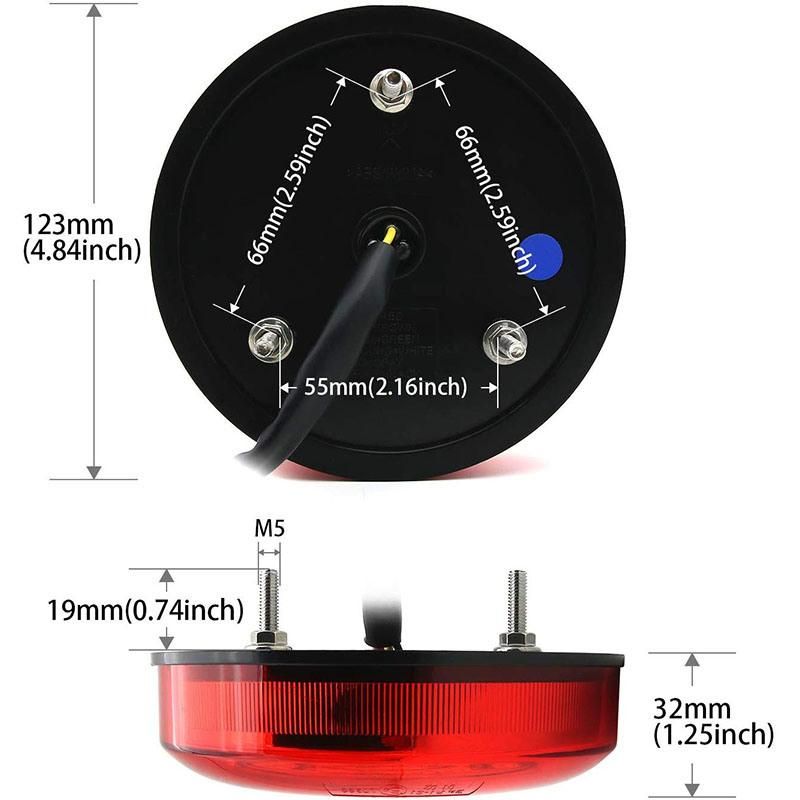

Outer Size	Dia123mm Height:34.2mm
IP Level	IP67
Light spec	Indicator:9pcs Tail:30PCS Reverse:9pcs 3014SMD
Voltage	12V(24V 10~30V) Power:Tail:0.1W,Stop:0.8W,  Indicator 0.6W Reverse:0.5W
Package	Fitting:Screw (Hole to hole 69mm)     Wiring:terminal,connector 45.5*35*23.5 cm    36PCS/ctn



^{1.piranha Led with intense light}

^{3.Lens material:PMMA (clear, red,yellow)}

^{4.Base material:ABS(black)}

^{5.install place:truck/trailer rear}

^{6.Configuration:}

^{A. The proof level of ultrasonic welding light is IP66.and the leval can be perfect to IP67when use hot melt gule.two connection way is provided for choosing.}

^{B.There is 1light/set,2lights/set,3lights/set(refer to the picture under) satisfied all the function that you want.we can also provide the oEM seivice for your unique requestion.}

^{7.warranty:1 year}

^{8.water proof:IP67}

^{11.cord length:usual:300mm/OEM}

^{12.voltage:12V/24V/12-30V/OEM}

^{13.Certificate:ECE,ADR,DOT}

^{14.Detail:all cord are wrapped in the  boot.connection wrapped in heat-shrink tube is equipped in the  end of cord to forbid electric shock.}

^{15.the photometric value and the lighting area is 100% meet the standard of Europe and Australia.}

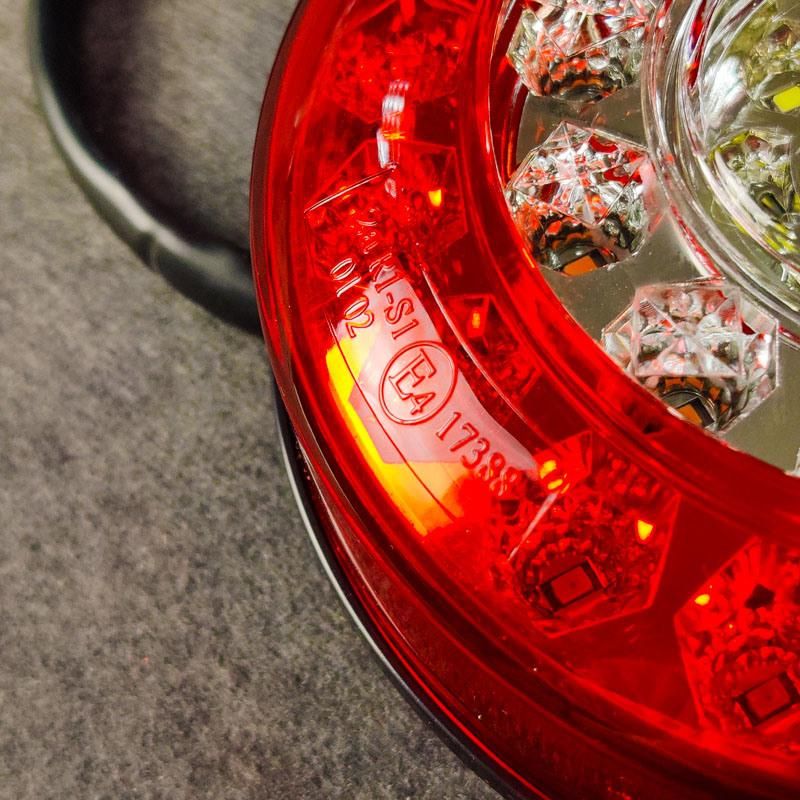

Product Show:

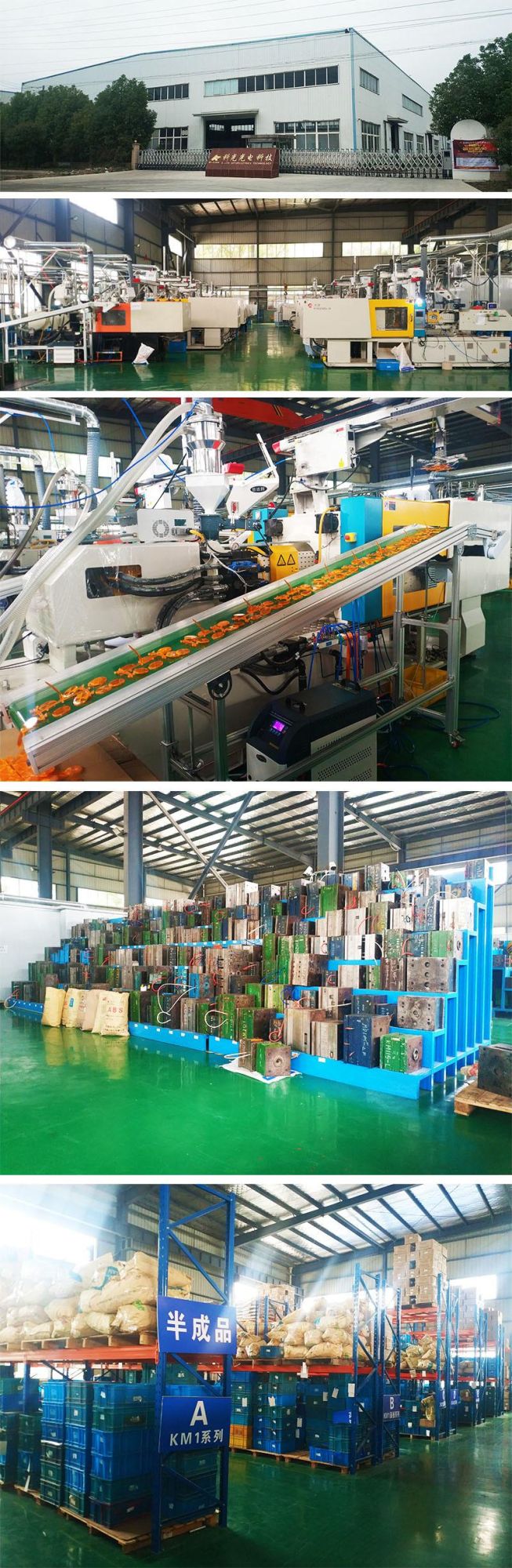

Company Information:

History:
•Founded in 2000, K-lite (Shanghai) Industrial Co.,Ltd specializes in designing and manufacturing all kinds of plastic molds and products for vehicle lamps and decorations.Especially manufacture kinds of trailer light, truck light,LED trailer lamp,trailer plug and trailer socket. Our products have been approved by E-mark&DOT&SAE&DOT, Now our customers almost come from every counties in Europe North America and Australia and some Southeast Asia markets. We have been the biggest and most professinal manufactuer for trailer lights in China. We are known as our qualified products, competive price and a rang of trailer lights, We have exported for more than 15 years. Have plenty of experience.

Development:

•In 2008, when LED became widely used in vehicle lighting, we began focus on vehicle LED lighting. After years and years of hard work, our vehicle LED lighting products become welcomed by most domestic motorcycle manufacturers, and we are able to OEM for YAMAHA.

Today:

•Now, we have grown up become an international enterprise, we have our own international trading branch in Shanghai named KYI International Co., Ltd. Manage to sell products to all over the world. Our business keeps expanding, product range includes:Vehicle LED lighting, Motorcycle led lamps, Road studs , Raised pavement markers, reflex reflectors, and other traffic safety products.



Our Core Strengths:


1. Internationalization of production and management standards. It introduces a large number of talents with international management.

2. Being well-experienced for ages in concerning industries. Many management staffs have many years of industry experience.

3. Having professional team of management, production, research and development, and service . It has several departments of different functions. And Every department owns strong team.

4. Strict quality control. There are many times to inspect and control the quality from material procurement to shipment.

5. Professional and efficient service. The customer service staff should to participate the professional training for a long time for many times. When customers contact us, we will follow up and give feedback in anytime.











FAQ


Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
