• Model NO.：TH-BT0348Z
• Power Output：144 Watts
• LEDs：48PCS*3030 SMD
• Lumen：5760lm
• Optional Beam：Spot,Flood,Combo
• Bracket：with Thin Bottom-Mounting Brackets
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Alum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：22",57.1cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 57.5*31*25cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT0348Z Power Output 144 Watts LEDs 48PCS*3030 SMD Lumen 5760lm Optional Beam Spot/Flood/Combo Bracket with Thin Bottom-Mounting Brackets Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Alum Alloy Bracket Waterproof Rate IP68 Length Size 22"/57.1cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 57.5*31*25cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

144W LED Spotlight Bar for Tractor Truck

truck led light bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Straight Double-Row designed
5. With thin bottom-mounting brackets

The Specification of Used Light Bars:

ITEM	DESCRIPTION
Model Number	TH-BT0348Z
Power Output	144 Watts
Operating Voltage	DC9~60V
LED Chip	48pcs*3030 SMD
Lumens	5760lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood/Combo
Housing Material	Diecast aluminum housing
Mounting Bracket	alum alloy bracket
Bracket	With thin bottom-mounting brackets
Len Materia	polycarboante lens
Housing item	Straight Double-Row designed
Length Size	22"/57.1cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

truck led bar lighting Qualifications:


Auto LED Offroad Light Bar B Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0306Z	4"/9.5cm	18W	3030 SMD	6pcs	720lm	Spot/Flood
TH-BT0312Z	6"/16.3cm	36W	3030 SMD	12pcs	1440lm	Spot/Flood
TH-BT0318Z	9"/23.1cm	54W	3030 SMD	18pcs	2160lm	Spot/Flood/Combo
TH-BT0324Z	12"/29.9cm	72W	3030 SMD	24pcs	2880lm	Spot/Flood/Combo
TH-BT0330Z	14"/36.7cm	90W	3030 SMD	30pcs	3600lm	Spot/Flood/Combo
TH-BT0336Z	17"/43.5cm	108W	3030 SMD	36pcs	4320lm	Spot/Flood/Combo
TH-BT0342Z	20"/50.3cm	126W	3030 SMD	42pcs	5040lm	Spot/Flood/Combo
TH-BT0348Z	22"/57.1cm	144W	3030 SMD	48pcs	5760lm	Spot/Flood/Combo
TH-BT0366Z	31"/77.5cm	198W	3030 SMD	66pcs	7920lm	Spot/Flood/Combo
TH-BT0378Z	36"/91.1cm	234W	3030 SMD	78pcs	9360lm	Spot/Flood/Combo
TH-BT0396Z	44"/111.5cm	288W	3030 SMD	96pcs	11520lm	Spot/Flood/Combo

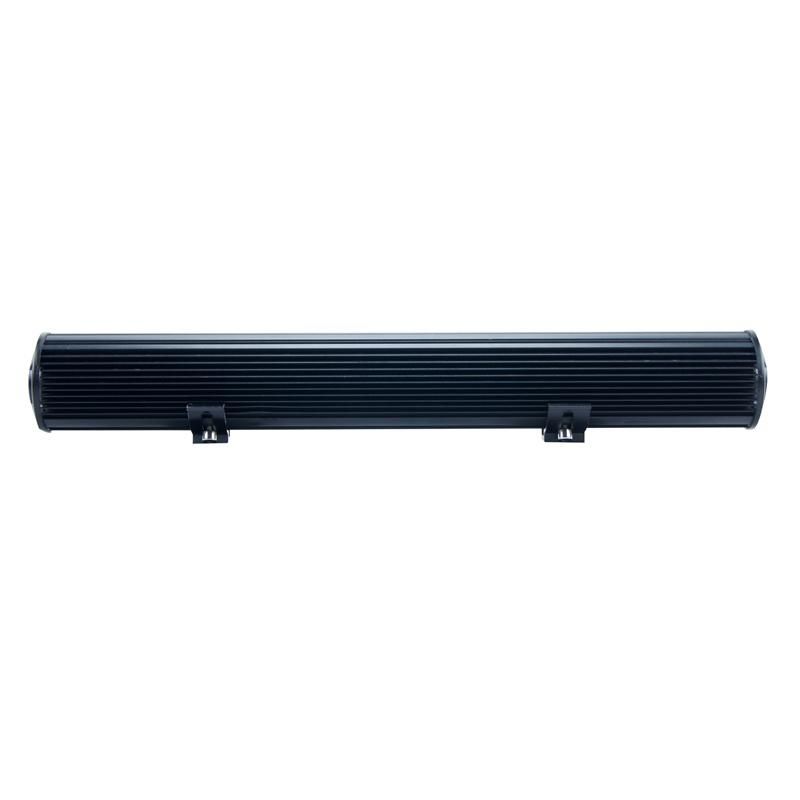

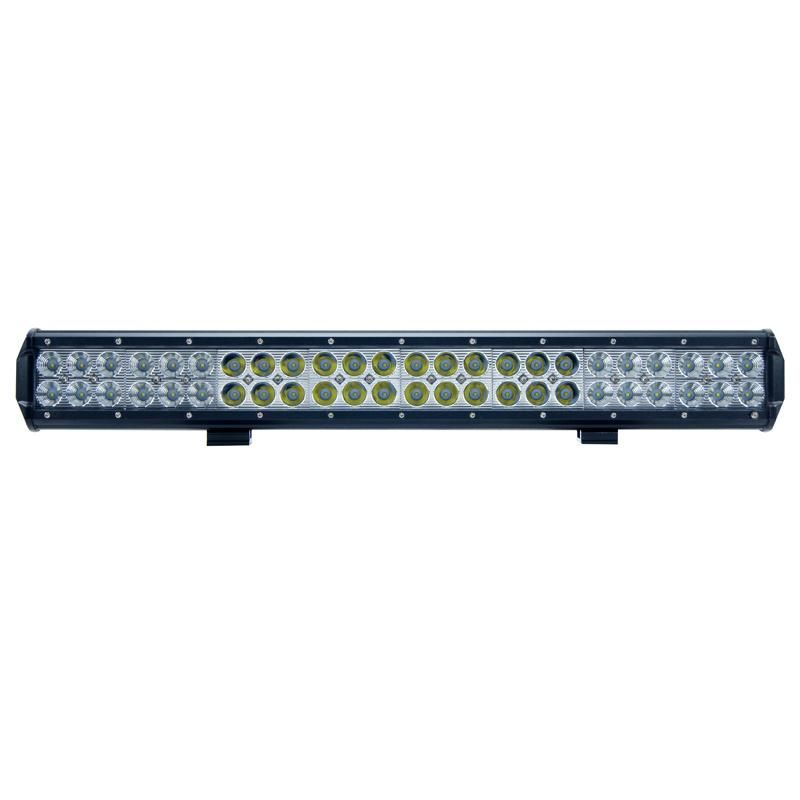

LED Offroad Bar Detail Image:




LED Light Accessory Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of LED Light Lightbar, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package truck led light bar:

Name	piece	G.W	Size
One piece	1pcs	2.13kgs	23*20*11CM
One carton	4pcs/ctn	8.5kgs	57.5*31*25CM


Shipping for Used Light Bars:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs truck led bar lighting & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Auto LED Offroad Light Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM LED Offroad Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM LED Light Accessory orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the LED Light Lightbar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is truck led light bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Used Light Bars orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
