• Model NO.：TH-BT0342Z-L
• Power Output：126 Watts
• LEDs：42PCS*Oslamp
• Lumen：5040lm
• Optional Beam：Spot,Flood,Combo
• Bracket：with Thin Bottom-Mounting Brackets
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：20",50.3cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 57.5*31*25m
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT0342Z-L Power Output 126 Watts LEDs 42PCS*Oslamp Lumen 5040lm Optional Beam Spot/Flood/Combo Bracket with Thin Bottom-Mounting Brackets Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 20"/50.3cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 57.5*31*25m Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

126W Waterproof 4D Lens LED Offroad Driving Light Lighting Bar

dual row led light bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. With thin bottom-mounting brackets
5. Straight Double-Row designed
6. With 4D optical lens

The Specification of Vehicle LED Lighting Bar:

ITEM	DESCRIPTION
Model Number	TH-BT0342Z-L
Power Output	126 Watts
Operating Voltage	DC9~60V
LED Chip	42pcs*Oslamp
Lumens	5040lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/Flood/Combo
Housing Material	Diecast aluminum housing,With4D optical lens
Mounting Bracket	aluminum alloy bracket
Bracket	With thin bottom-mounting brackets
Len Materia	polycarboante lens
Housing item	Straight Double-Row designed

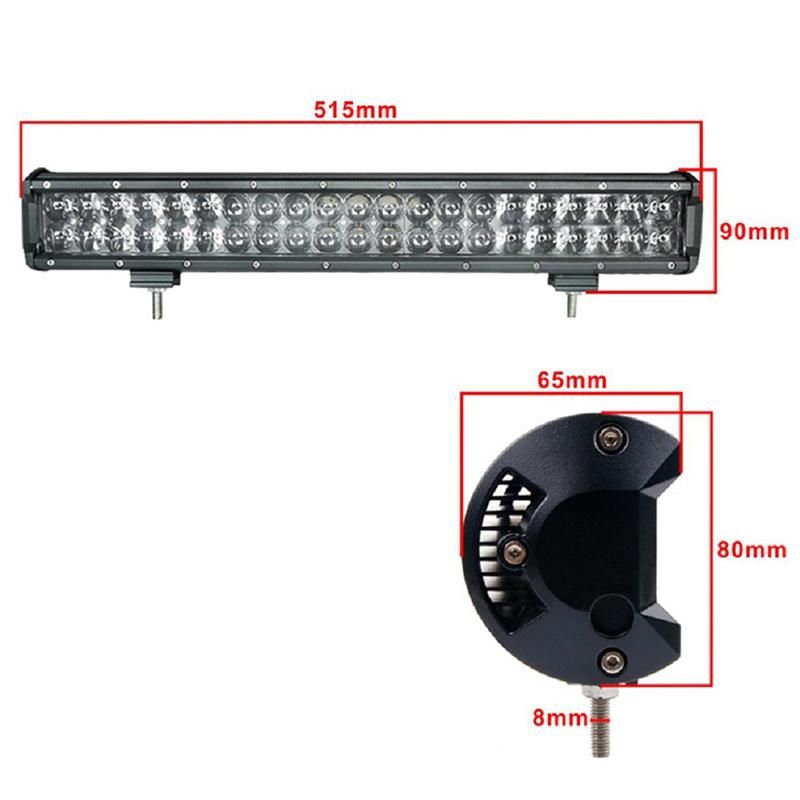

Length Size	20"/50.3cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Off Road Led Light Bar Qualifications:



lightbar B 4D Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0306Z-L	4"/9.5cm	18W	Oslamp	6pcs	720lm	Spot/Flood
TH-BT0312Z-L	6"/16.3cm	36W	Oslamp	12pcs	1440lm	Spot/Flood
TH-BT0318Z-L	9"/23.1cm	54W	Oslamp	18pcs	2160lm	Spot/Flood/Combo
TH-BT0324Z-L	12"/29.9cm	72W	Oslamp	24pcs	2880lm	Spot/Flood/Combo
TH-BT0330Z-L	14"/36.7cm	90W	Oslamp	30pcs	3600lm	Spot/Flood/Combo
TH-BT0336Z-L	17"/43.5cm	108W	Oslamp	36pcs	4320lm	Spot/Flood/Combo
TH-BT0342Z-L	20"/50.3cm	126W	Oslamp	42pcs	5040lm	Spot/Flood/Combo
TH-BT0348Z-L	22"/57.1cm	144W	Oslamp	48pcs	5760lm	Spot/Flood/Combo
TH-BT0366Z-L	31"/77.5cm	198W	Oslamp	66pcs	7920lm	Spot/Flood/Combo
TH-BT0378Z-L	36"/91.1cm	234W	Oslamp	78pcs	9360lm	Spot/Flood/Combo
TH-BT0396Z-L	44"/111.5cm	288W	Oslamp	96pcs	11520lm	Spot/Flood/Combo

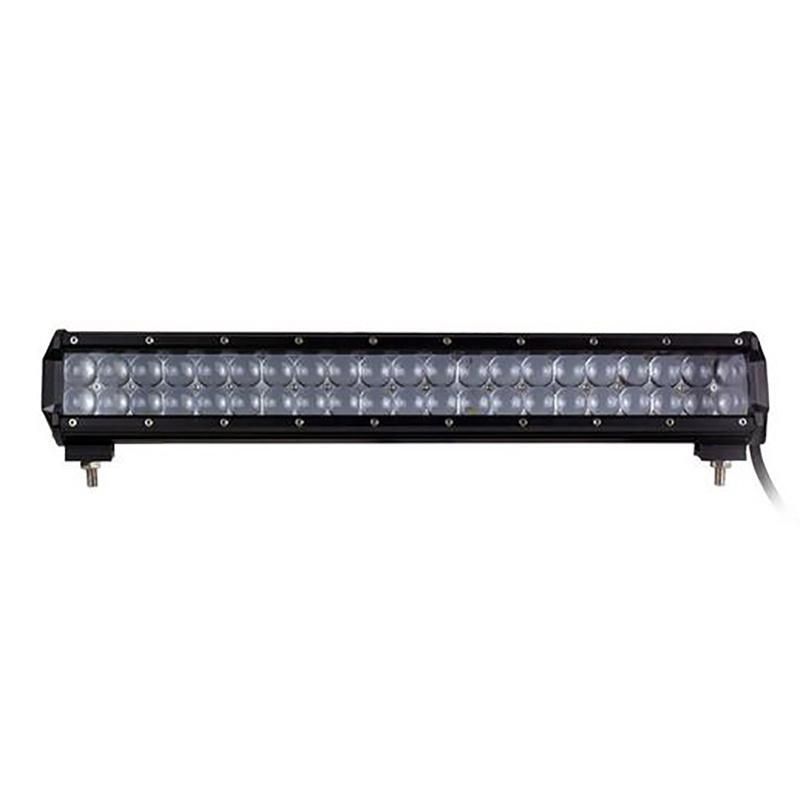

Car Lightbar for Truck Detail Image:




Hight Brightness Lightbar Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of High Power LED Lighting Bar and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package dual row led light bar:

Name	piece	G.W	Size
One piece	1pcs	2.13kgs	23*20*11CM
One carton	4pcs/ctn	8.5kgs	57.5*31*25CM


Shipping for Vehicle LED Lighting Bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs Off Road Led Light Bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your lightbar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM Car Lightbar for Truck orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Hight Brightness Lightbar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the High Power LED Lighting Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is dual row led light bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Vehicle LED Lighting Bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
