• Model NO.：TH-ET0180C
• Power Output：80 Watts
• LEDs：8PCS*10W CREE
• Lumen：6400lm
• Optional Beam：Spot,Flood,Combo
• Optional Bracket：with Bottom-Mounting Brackets
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Alum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：15",38.8cm
• Transport Package：One Piece in One Box, Eight Boxes in One Carton
• Specification：Carton size: 60*48*26cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-ET0180C Power Output 80 Watts LEDs 8PCS*10W CREE Lumen 6400lm Optional Beam Spot/Flood/Combo Optional Bracket with Bottom-Mounting Brackets Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Alum Alloy Bracket Waterproof Rate IP68 Length Size 15"/38.8cm Transport Package One Piece in One Box, Eight Boxes in One Carton Specification Carton size: 60*48*26cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

Single Row 80W 4*4 LED Light Bar for Offroad

CREE LED Offroad Light Bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Straight Single-Row designed
5. With bottom-mounting brackets



The Specification of 10w cree led light bar:

ITEM	DESCRIPTION
Model Number	TH-ET0180C
Power Output	80 Watts
Operating Voltage	DC9~60V
LED Chip	8pcs*10W CREE
Lumens	6400lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood/Combo
Housing Material	Diecast aluminum housing
Mounting Bracket	alum alloy bracket
Optional Bracket	With bottom-mounting brackets
Len Materia	polycarboante lens
Housing item	Straight Single-Row designed
Length Size	15"/38.8cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

ATV LED Work Light Bar Qualifications:

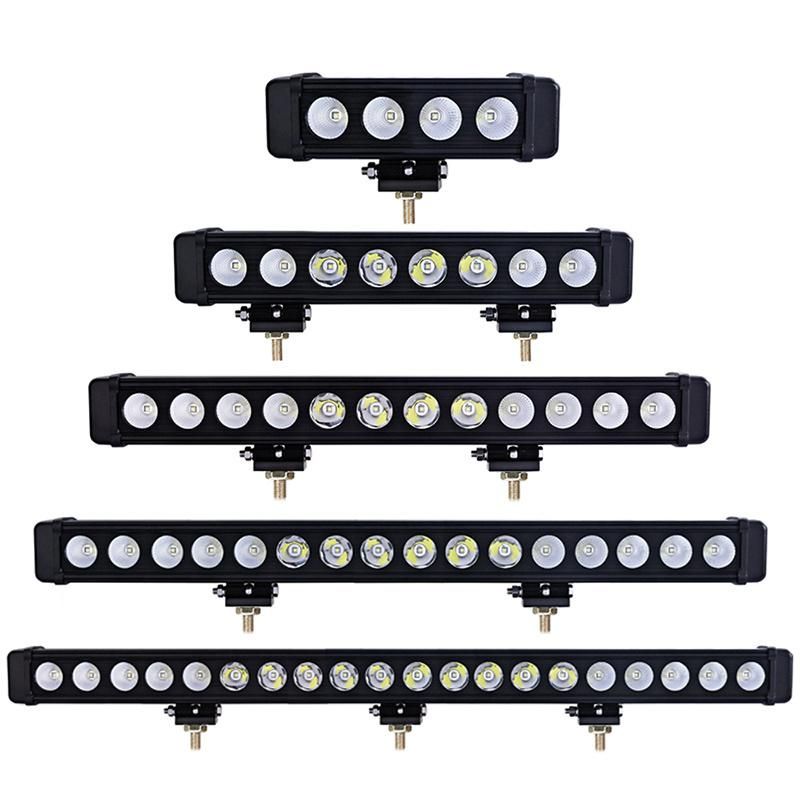

Mini LED Work Light Bar E Series Size:


Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-ET0120C	5"/11.8cm	20W	10W Cree	2pcs	1440lm	Spot/Flood
TH-ET0140C	8"/20.8cm	40W	10W Cree	4pcs	2880lm	Spot/Flood
TH-ET0160C	12"/29.8cm	60W	10W Cree	6pcs	4320lm	Spot/Flood/Combo
TH-ET0180C	15"/38.8cm	80W	10W Cree	8pcs	6400lm	Spot/Flood/Combo
TH-ET01100C	19"/47.8cm	100W	10W Cree	10pcs	7200lm	Spot/Flood/Combo
TH-ET01120C	22"/56.8cm	120W	10W Cree	12pcs	9600lm	Spot/Flood/Combo
TH-ET01140C	26"/65.8cm	140W	10W Cree	14pcs	10080lm	SSpot/Flood/Combo
TH-ET01160C	29"/74.8cm	160W	10W Cree	16pcs	11520lm	Spot/Flood/Combo
TH-ET01180C	33"/83.8cm	180W	10W Cree	18pcs	12960lm	Spot/Flood/Combo
TH-ET01200C	37"/92.8cm	200W	10W Cree	20pcs	16000lm	Spot/Flood/Combo
TH-ET01240C	44"/110.8cm	240W	10W Cree	24pcs	17280lm	Spot/Flood/Combo
TH-ET01260C	47"/119.8cm	260W	10W Cree	26pcs	18720lm	Spot/Flood/Combo

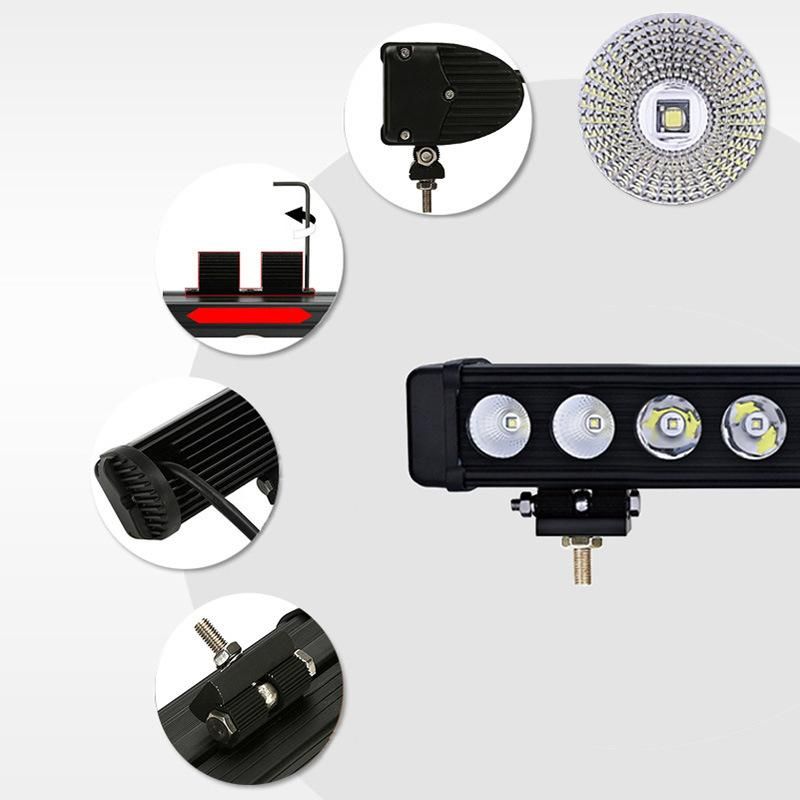

CREE LED Work Light Bar Detail Image:



Slim LED Working Light Bars Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Working LED Light Bar, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package CREE LED Offroad Light Bar:

Name	piece	G.W	Size
One piece	1pcs	2.06kgs	23*20*11CM
One carton	8pcs/ctn	16.5kgs	60*48*26CM


Shipping for 10w cree led light bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs ATV LED Work Light Bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Mini LED Work Light Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM CREE LED Work Light Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Slim LED Working Light Bars orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Working LED Light Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is CREE LED Offroad Light Bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place 10w cree led light bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
