• Model NO.：TH-BT0396Z-L
• Power Output：288 Watts
• LEDs：96PCS*Oslamp
• Lumen：11520lm
• Optional Beam：Spot,Flood,Combo
• Bracket：with Thin Bottom-Mounting Brackets
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing, Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：44",111.5cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 96*31*27cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT0396Z-L Power Output 288 Watts LEDs 96PCS*Oslamp Lumen 11520lm Optional Beam Spot/Flood/Combo Bracket with Thin Bottom-Mounting Brackets Len Materia Polycarboante Lens Materia Diecast Aluminum Housing, Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 44"/111.5cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 96*31*27cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

High Power 288W LED Light Lighting Bar for Tractor

Brightest LED Light Bar Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. With thin bottom-mounting brackets
5. Straight Double-Row designed
6. With 4D optical lens

The Specification of Car Driving LED Light Bar:

ITEM	DESCRIPTION
Model Number	TH-BT0396Z-L
Power Output	288 Watts
Operating Voltage	DC9~60V
LED Chip	96pcs*Oslamp
Lumens	11520lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/Flood/Combo
Housing Material	Diecast aluminum housing,With 4D optical lens
Mounting Bracket	aluminum alloy bracket
Bracket	With thin bottom-mounting brackets
Len Materia	polycarboante lens
Housing item	Straight Double-Row designed

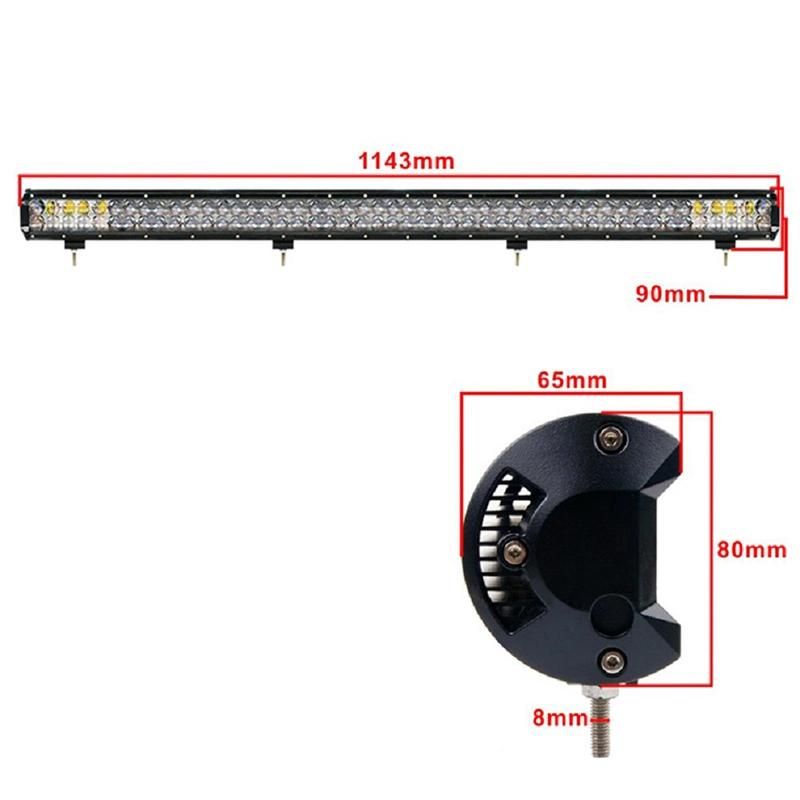

Length Size	44"/111.5cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

Car Light Bar LED Qualifications:



High Performance LED Light Bar B 4D Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0306Z-L	4"/9.5cm	18W	Oslamp	6pcs	720lm	Spot/Flood
TH-BT0312Z-L	6"/16.3cm	36W	Oslamp	12pcs	1440lm	Spot/Flood
TH-BT0318Z-L	9"/23.1cm	54W	Oslamp	18pcs	2160lm	Spot/Flood/Combo
TH-BT0324Z-L	12"/29.9cm	72W	Oslamp	24pcs	2880lm	Spot/Flood/Combo
TH-BT0330Z-L	14"/36.7cm	90W	Oslamp	30pcs	3600lm	Spot/Flood/Combo
TH-BT0336Z-L	17"/43.5cm	108W	Oslamp	36pcs	4320lm	Spot/Flood/Combo
TH-BT0342Z-L	20"/50.3cm	126W	Oslamp	42pcs	5040lm	Spot/Flood/Combo
TH-BT0348Z-L	22"/57.1cm	144W	Oslamp	48pcs	5760lm	Spot/Flood/Combo
TH-BT0366Z-L	31"/77.5cm	198W	Oslamp	66pcs	7920lm	Spot/Flood/Combo
TH-BT0378Z-L	36"/91.1cm	234W	Oslamp	78pcs	9360lm	Spot/Flood/Combo
TH-BT0396Z-L	44"/111.5cm	288W	Oslamp	96pcs	11520lm	Spot/Flood/Combo

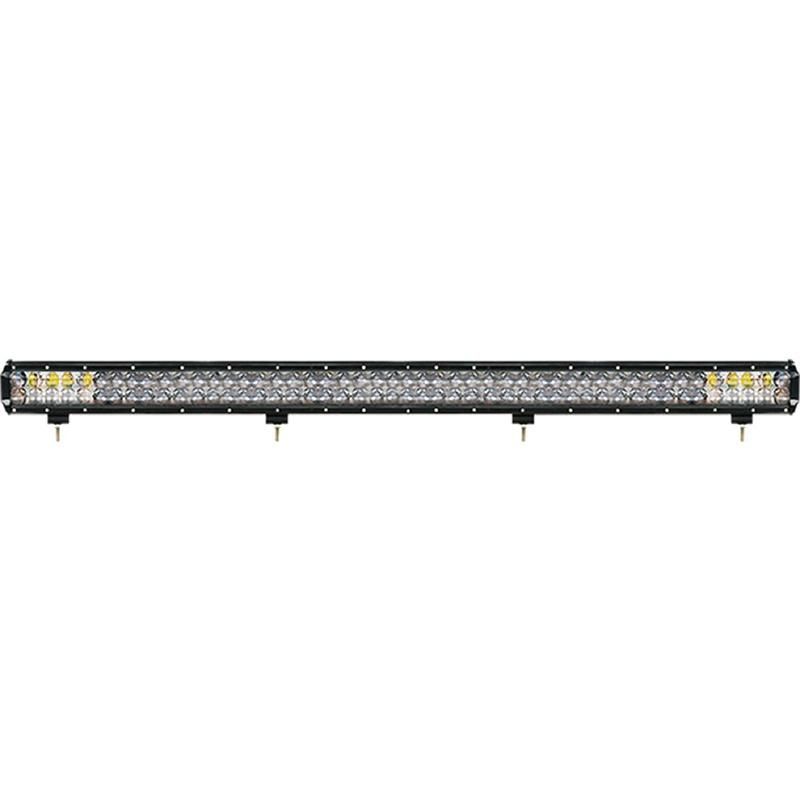

Auto LED Offroad Light Bar Detail Image:




LED Light Bar Offroad Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of High Voltage LED Bar Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package High Performance led light bar:

Name	piece	G.W	Size
One piece	1pcs	4.25kgs	23*20*11CM
One carton	4pcs/ctn	17kgs	96*31*27CM


Shipping for auto led offroad light bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs Car Light Bar LED & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your High Performance LED Light Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM Auto LED Offroad Light Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM LED Light Bar Offroad orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the High Voltage LED Bar Light MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is Brightest LED Light Bar lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Car Driving LED Light Bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
