• Model NO.：G5
• Base：Universal
• Voltage：9-16V
• Function：Dipped Headlight, High Beam, Canbus Decoder
• Brand：OEM
• Resistance：Shock-Resistant
• Certification：E-mark, DOT
• Weight：0.3kg,Pair
• Use for：LED Headlight
• Color：Black
• Power：10W
• Transport Package：Anti-Static Bag
• Specification：white box
• Trademark：B-KING
• Origin：China
• HS Code：85122010
• Production Capacity：50000PCS,Month
• Package size per unit product：8.00cm * 7.00cm * 2.50cm
• Gross weight per unit product：0.200kg

Basic Info.

Model NO. G5 Base Universal Voltage 9-16V Function Dipped Headlight, High Beam, Canbus Decoder Brand OEM Resistance Shock-Resistant Certification E-mark, DOT Weight 0.3kg/Pair Use for LED Headlight Color Black Power 10W Transport Package Anti-Static Bag Specification white box Trademark B-KING Origin China HS Code 85122010 Production Capacity 50000PCS/Month

Packaging & Delivery

Package size per unit product 8.00cm * 7.00cm * 2.50cm Gross weight per unit product 0.200kg

Product Description

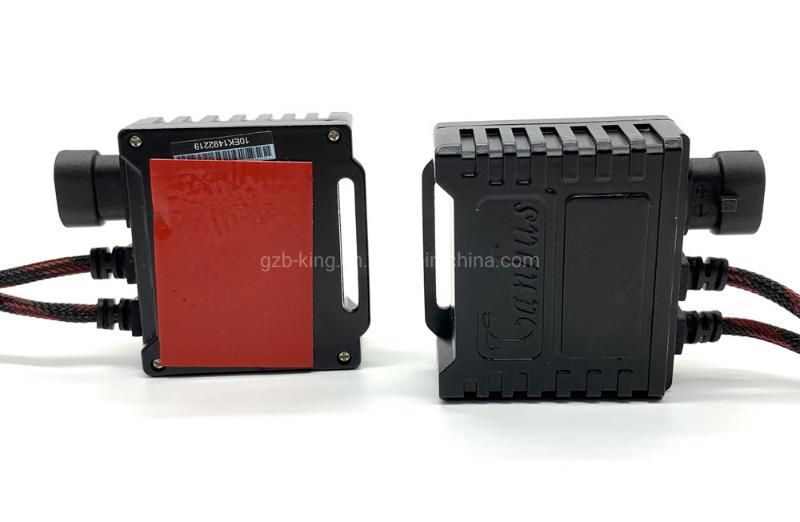

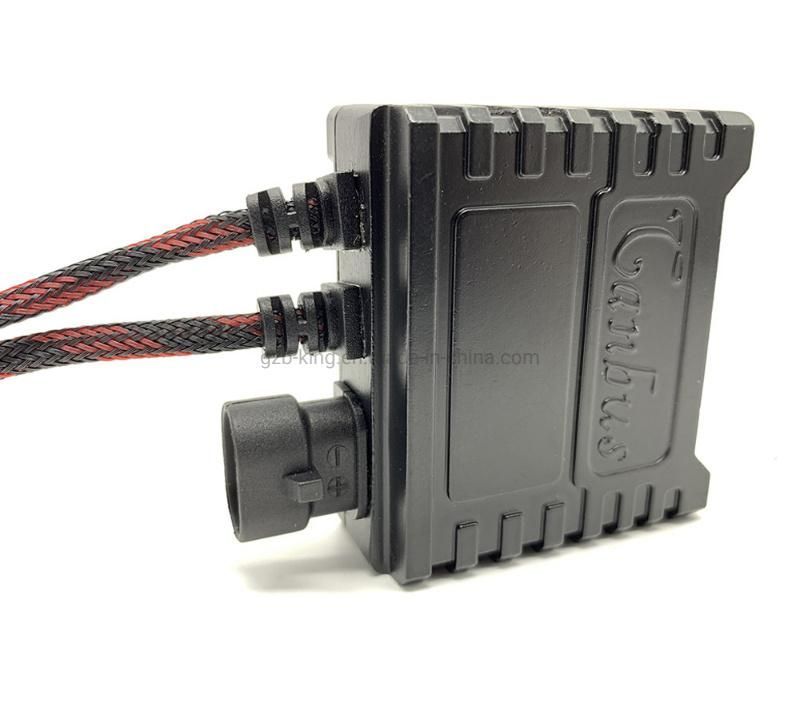

Electronics Canbus Decoder for LED Headlight

Item No.: H11

Specification:

input voltage:9-16V

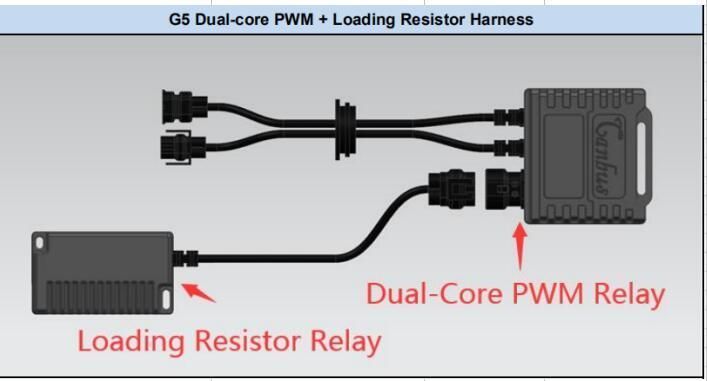

Current :0.6A/13.5V( dual core PWM), 12W/13.5V ( loading resistor),total 20W

Impedance 27ohm( dual core PWM), 12ohm ( loading resistor), total 9ohm

working temperature: -40 ºC-+85ºC

capacitor:20.000 uf

Description:
When a LED kit is installed in newer car models or cars with a computer controlled unit CAN BUS, often there is a error code showing on the dash board or the HID lights keep flickering and would not stay on. This is due to the fact that the LED kit is triggering a bulb out warning signal in your car's computer control unit.

Where the item stand out:
This is a set of 2 pieces LED Decoders. The decoder is designed to balances out the current draw of the HID kit and would offset the warning signals on the dash board. It will also eliminate headlight flickering that is caused by the Vehicle's computer not recognizing the low wattage HID/LED bulb.

Solve the following problems:
1.The indicator of the instrument panel lights up when the headlight is used as Fault Light.
2.The indicator of the instrument panel doesn't light up when the headlight is used as High Beam.
3.The LED head lights flash when starting the engine.
4.The engine stops working when turning on the LED head lights.
5.Error warning.
6.LED head lights don't light up.
7.LED head lights keep flashing after installation.
8.One of the LED head lights up, but the other one doesn't light.
9.LED head lights automatically turn off after lighting up for few minutes.

Product Features:
Can-Bus decoder, eliminating error code on dash for 90% of the cars.
Cancel error message cause by On-Board Computer "bulb out" or "bulb failure" warnings error.
Help solve light flickering issue cause by car computer.

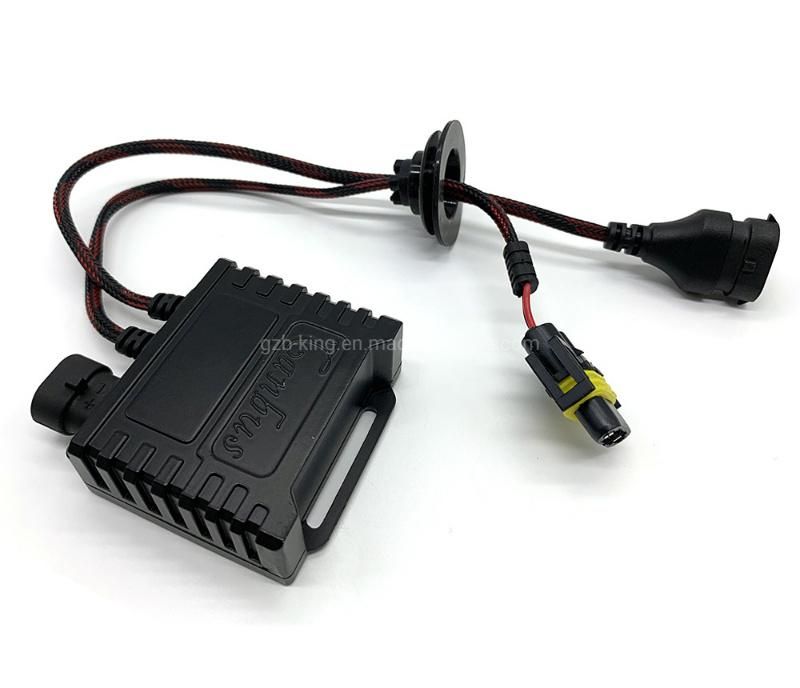

Pre-wired for direct plug and play, bypass wiring like regular load resistors.
Load resistors will ensure the LED bulbs light up full power without malfunction issue.
Easy to install, Plug-n-Play AMP connectors.
100% water proof, weather proof.
Input Voltage: DC 9-36v
Please make sure the power is OFF during installation.
