• Model NO.：TH-BT03108C
• Power Output：108 Watts
• LEDs：36PCS*3W CREE
• Lumen：7200lm
• Optional Beam：Spot,Flood,Combo
• Bracket：Thick Bottom-Mounting Brackets with Sliding Blocks
• Len Materia：Polycarboante Lens
• Materia：Diecast Aluminum Housing,Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Dimension：17",43.5cm
• Transport Package：One Piece in One Box, Four Boxes in One Carton
• Specification：Carton size: 61*34*38cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-BT03108C Power Output 108 Watts LEDs 36PCS*3W CREE Lumen 7200lm Optional Beam Spot/Flood/Combo Bracket Thick Bottom-Mounting Brackets with Sliding Blocks Len Materia Polycarboante Lens Materia Diecast Aluminum Housing,Aluminum Alloy Bracket Waterproof Rate IP68 Dimension 17"/43.5cm Transport Package One Piece in One Box, Four Boxes in One Carton Specification Carton size: 61*34*38cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

108W CREE Automotive Driving LED Light Lighting Bar

led strip bar lighting Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. Thick bottom-mounting brackets with sliding blocks
5. Straight Double-Row designed


The Specification of Straight led light bar:

ITEM	DESCRIPTION
Model Number	TH-BT03108C
Power Output	108 Watts
Operating Voltage	DC9~60V
LED Chip	36PCS*3W CREE
Lumens	7200lm
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/Flood/Combo
Housing Material	Diecast aluminum housing
Mounting Bracket	aluminum alloy bracket
Bracket	Thick bottom-mounting brackets with sliding blocks
Len Materia	polycarboante lens
Housing item	Straight Double-Row designed
Length Size	17"/43.5cm
Life Span	Above 30,000 hours
Wire Length	60cm
Warranty	12 months

double row led light bar Qualifications:



Wholesale Lighting Bar B Series Size:

Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-BT0318C	4"/9.5cm	18W	3W Cree	6pcs	1200lm	Spot/Flood
TH-BT0336C	6"/16.3cm	36W	3W Cree	12pcs	2400lm	Spot/Flood
TH-BT0354C	9"/23.1cm	54W	3W Cree	18pcs	3600lm	Spot/Flood/Combo
TH-BT0372C	12"/29.9cm	72W	3W Cree	24pcs	4800lm	Spot/Flood/Combo
TH-BT0390C	14"/36.7cm	90W	3W Cree	30pcs	6000lm	Spot/Flood/Combo
TH-BT03108C	17"/43.5cm	108W	3W Cree	36pcs	7200lm	Spot/Flood/Combo
TH-BT03126C	20"/50.3cm	126W	3W Cree	42pcs	8400lm	Spot/Flood/Combo
TH-BT03144C	22"/57.1cm	144W	3W Cree	48pcs	9600lm	Spot/Flood/Combo
TH-BT03198C	31"/77.5cm	198W	3W Cree	66pcs	13200lm	Spot/Flood/Combo
TH-BT03234C	36"/91.1cm	234W	3W Cree	78pcs	15600lm	Spot/Flood/Combo
TH-BT03288C	44"/111.5cm	288W	3W Cree	96pcs	19200lm	Spot/Flood/Combo

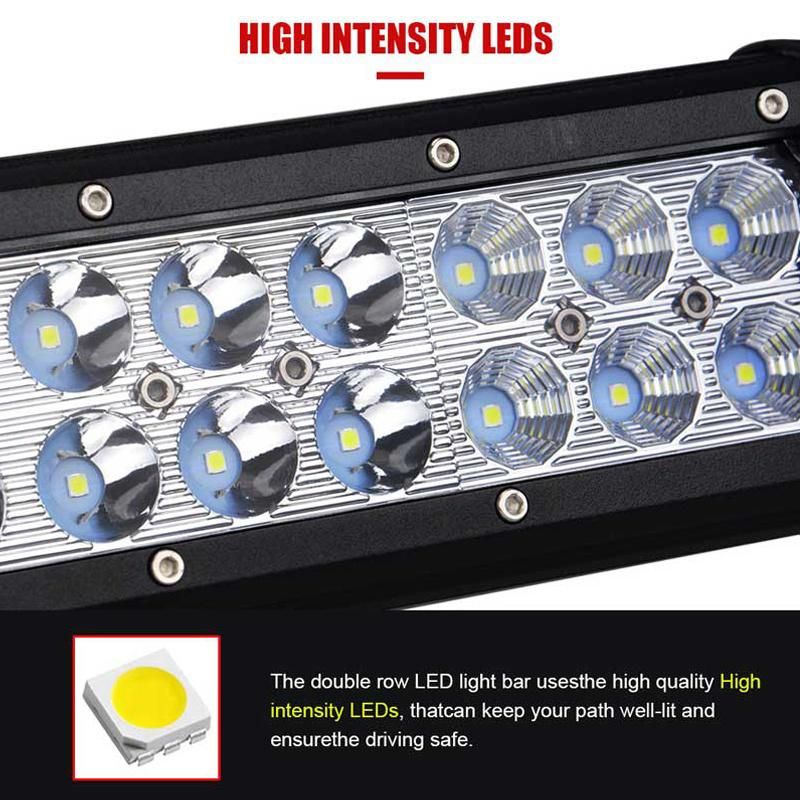

LED Auto Lighting Bar Detail Image:




Wholesale Light Bar Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Automobile Lighting Bar and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package led strip bar lighting:

Name	piece	G.W	Size
One piece	1pcs	2kgs	23*20*11CM
One carton	4pcs/ctn	8kgs	61*34*38CM


Shipping for Straight led light bar:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs double row led light bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Wholesale Lighting Bar after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM LED Auto Lighting Bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM Wholesale Light Bar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Automobile Lighting Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is led strip bar lighting lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Straight led light bar orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
