• Model NO.：TY-UVC-20-A-210mm
• Transport Package：Carton
• Specification：210*12*1.6mm
• Trademark：UVTaoYuan
• Origin：China Shenzhen
• HS Code：8531200000
• Production Capacity：50000PCS,Year

ModelSize(mm)Optical power(MW)WavelengthForward voltageBeam AngleIF=400mAVF[V]MinimumMaximumMinimumMaximumTY-UVC-20-A-210mm210*12*1.6100160265-280nm1014140

Deep UV LED 265-280 nm Features:
Adopt 1.6 thick 210*12mm aluminum base heat sink, 20pcs LED 2 string 10 and line voltage: 10-14V current: 400mA
Efficient: sterilization and disinfection effect can reach 99.9% in a short time
Energy saving: 80% energy saving compared to traditional cold cathode lamps
Environmental protection: common harmful substances in metal-free gas illuminating technology
The service life is up to 10,000 hours.
Instant start, high frequency switch.

Deep ultraviolet LED 265-280nm use precautions:
a. Do not touch the front of the LED to avoid affecting the normal illumination of the device.
b. The positive and negative electrodes must be confirmed before turning on the power device. Reverse connection will damage the device.
c. Strictly follow the electrical parameters provided by our company. If the voltage is too high, it may damage the device.
d. Under the working condition of deep ultraviolet LED, it should avoid observing the illumination with close eyes.

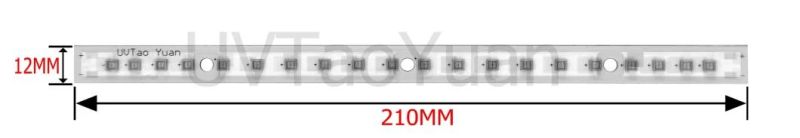

Deep ultraviolet LED 265-280nm strip dimension:




Deep UV LED 265-280nm product applications:
Widely used in optical communication, biochemical detection, sensing technology, packaging containers, bottle bodies, bottle cap sterilization, food surface sterilization, food production lines, cosmetics production line air sterilization, sewage, drinking water disinfection. Oral treatment examination, dermatological treatment, environmental surface anti-virus, air disinfection. The sterilization effect in a short time can reach 99.9%.

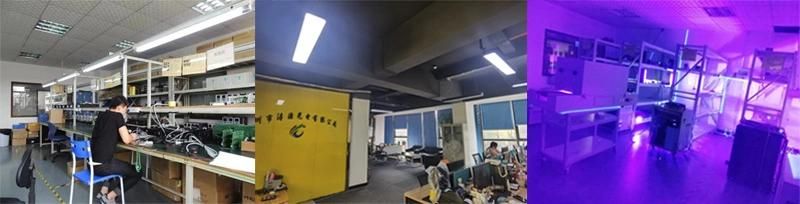

TAOYUAN ELECTRON (HK) LIMITED specializes in the UV LED curing syetem and UV solutions, high power UV LED, UV LED
