• Model NO.：TH-AT04120C-L
• Power Output：120 Watts
• LEDs：12PCS*10W CREE
• Lumen：8640lm
• Optional Beam：Spot,Flood,Combo
• Bracket：with Side-Mounting Brackets
• Lens Materia：Polycarbonate
• Materia：Diecast Aluminum Housing, Aluminum Alloy Bracket
• Waterproof Rate：IP68
• Length Size：20.5",52.1cm
• Transport Package：One Piece in One Box, Twenty Boxes in One Carton
• Specification：Carton size: 34*24*36cm
• Trademark：Teehon
• Origin：Guangzhou China
• HS Code：8512201000
• Production Capacity：15000 PCS Per Months

Basic Info.

Model NO. TH-AT04120C-L Power Output 120 Watts LEDs 12PCS*10W CREE Lumen 8640lm Optional Beam Spot/Flood/Combo Bracket with Side-Mounting Brackets Lens Materia Polycarbonate Materia Diecast Aluminum Housing, Aluminum Alloy Bracket Waterproof Rate IP68 Length Size 20.5"/52.1cm Transport Package One Piece in One Box, Twenty Boxes in One Carton Specification Carton size: 34*24*36cm Trademark Teehon Origin Guangzhou China HS Code 8512201000 Production Capacity 15000 PCS Per Months

Product Description

4D LED Light Bar IP68 Waterproof 120W LED Light Bar

Outdoor Led Bar Light Advantages:
1. DC 9~60V ultra-wide operating voltage, applies to various vehicles;
2. Concise & mature designed circuit board ensures high quality;
3. 0.2% extreme low defective rate,due to the adoption of Korean components;
4. With 4D optical lens
5. With side-mounting brackets

The Specification of Car Light:

ITEM	DESCRIPTION
Model Number	TH-AT04120C-L
Power Output	120 Watts
Operating Voltage	DC9~60V
LED Chip	12pcs*10W CREE
Lumens	8640LM
Color Temperature:	6000K
Waterproof rating	IP68
Optional Beam Pattern	Spot/flood/Combo
Housing Material	Diecast aluminum housing
Mounting Bracket	Aluminum alloy bracket
Optional Bracket	Long or short side-mounting brackets
Lens Material	polycarbonate lens
Housing item	Stright Single row with 4D Lens
Length Size	20.5"/52.1cm
Life Span	Above 50,000 hours
Wire Length	60cm
Warranty	12 months

aluminum led light bar Qualifications:

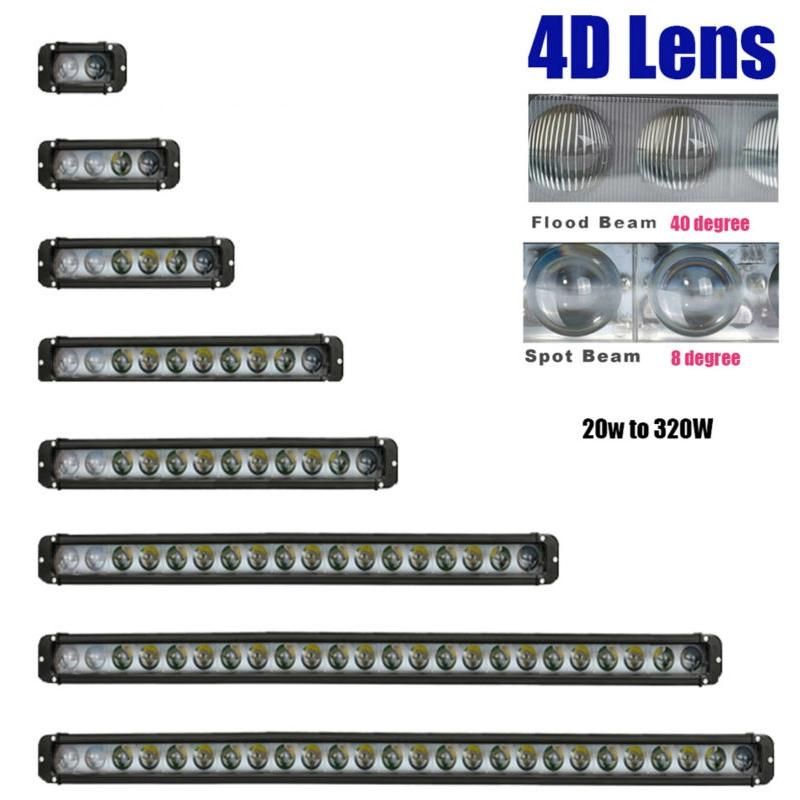

Led Bar Spotlight A - 4D Series Size:



Model	Length Size	Power	LED Type	LED Quantity	Lumens	Beam
TH-AT0420C-L	5"/12.1cm	20W	10W Cree	2pcs	1440lm	Spot/Flood
TH-AT0440C-L	8"/20.1cm	40W	10W Cree	4pcs	2880lm	Spot/Flood
TH-AT0460C-L	11"/28.1cm	60W	10W Cree	6pcs	4320lm	Spot/Flood/Combo
TH-AT0480C-L	14"/36.1cm	80W	10W Cree	8pcs	5760lm	Spot/Flood/Combo
TH-AT04100C-L	17"/44.1cm	100W	10W Cree	10pcs	7200lm	Spot/Flood/Combo
TH-AT04120C-L	20.5"/52.1cm	120W	10W Cree	12pcs	8640lm	Spot/Flood/Combo
TH-AT04140C-L	24"/60.1cm	140W	10W Cree	14pcs	10080lm	Spot/Flood/Combo
TH-AT04160C-L	27"/68.1cm	160W	10W Cree	16pcs	11520lm	Spot/Flood/Combo
TH-AT04180C-L	30"/76.1cm	180W	10W Cree	18pcs	12960lm	Spot/Flood/Combo
TH-AT04200C-L	33"/84.1cm	200W	10W Cree	20pcs	14400lm	Spot/Flood/Combo
TH-AT04240C-L	39"/100.1cm	240W	10W Cree	24pcs	17280lm	Spot/Flood/Combo
TH-AT04260C-L	43"/108.1cm	260W	10W Cree	26pcs	18720lm	Spot/Flood/Combo

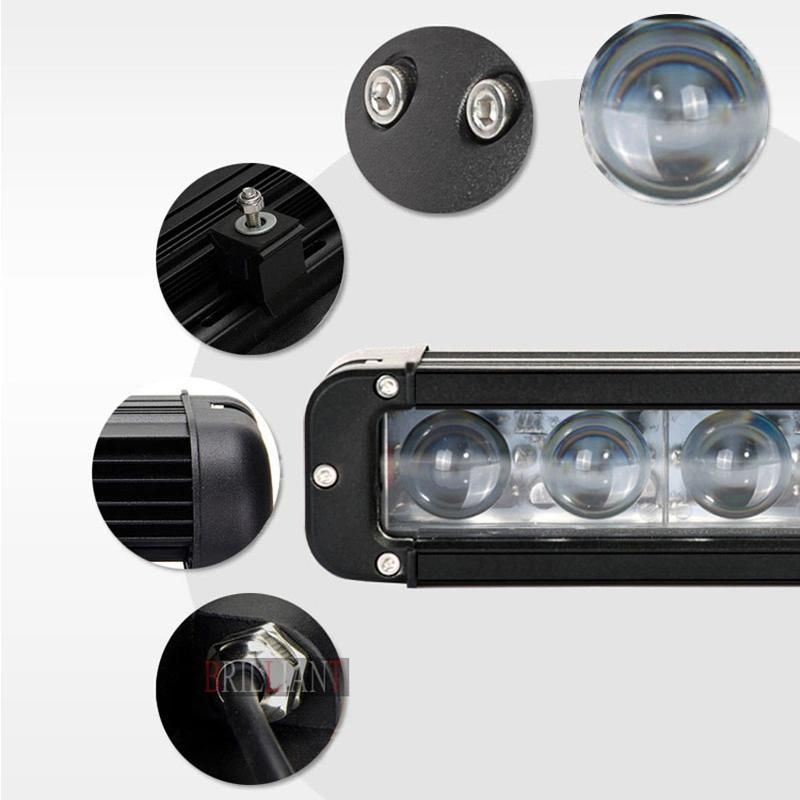

wholesale led light bar Detailed Image:






led spotlight bar Application:

Company and Factory:
Established in 2008,Teehon has been dedicated in the research, development and manufacturing of Car Roof Top Light Bar, LED Work Light and LED headlight. Our factory own 7 production lines : 1 LED packaging line, 2 SMT production lines and 4 LED light production lines. The cost is controlled accurately and the quality is guaranteed.


Production Facilities:

Name	No.	Name	No.
(Fuji, Panasonic, Casio) SMT machines	4	pressure testers	3
hot air-reflow systems	2	UV-VIS-Near IR Spectro photo colorimeter	2
wire peeling machines	4	LCR Digital Electric Bridges	3
laser carving machines	2	Oscilloscopes	5
automatic wire peeling machines	2	integrating sphere	1

Size and Package Outdoor Led Bar Light:

Name	piece	G.W	Size
One piece	1pcs	0.3kgs	23*20*11CM
One carton	20pcs/ctn	15kgs	34*24*36CM


Shipping for Car Light:

Sample order	Shipping by express like DHL, FEDEX, TNT, EMS about 3-5days
Bulk order	Shipping by sea about 7-15days


Why choose us:
1.Provide complete ODM&OEM solutions, which include LEDs producing, circuit board designing & producing, as well as housing designing
2.Strong R&D capabilities: to develop a new product costs only 30 days, we release at least 2 new products each month.
3.Powerful production strength: we can produce 15,000pcs aluminum led light bar & 90,000pcs Rohs Ce LED Work Lights each month.
4.Extraordinary quality & cost control ability: we are the only auto LED light manufacturer who makes the light from beginning to end, the defective rate of product is lower to 0.2%.
 The LEDs will be lighten up for 6 times before delivery, and each light will be tested strictly under water according to IP68 waterproof standard.
  A modern factory: owns a high-class LED encapsulation laboratory, and 5 high speed full automatic SMT machines, the whole factory is equipped with over 30   advanced producing & testing facilities

FAQ:

Q: What's your Led Bar Spotlight after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you accept ODM&OEM wholesale led light bar orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and LED bulbs in different brands, we also customize circuit board & packaging box as per your requirements.

Q: How to work with you on ODM&OEM led spotlight bar orders?
A: There are three forms of cooperation for choice:
1.Housing customization: we need to negotiate the cost of development and reach an agreement before starting the cooperation;
2.Various colors of housing customization: No extra cost, however the MOQ is 100 pcs;
3.Various colors of LED bulbs customization: MOQ is 10 pcs, meanwhile the price will be increased.

Q: What's the Car Roof Top Light Bar MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q: How long is the Outdoor Led Bar Light lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q: How to place Car Light orders?
A: 1. Email us the model, beam pattern and quantity, consignee information, shipping way
and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
