• Model NO.：f pcb
• PCB Layer：1-26 Layers
• SMT Line Quantity: ：30
• Solder Mask：Any
• Silk Screen：Any
• Surface Treatment：HASL
• PCB Assembly Type：SMT and DIP
• PCB Service：One Stop Service
• Small Orders：1 PCS Is Ok
• Copper Thickness：1oz
• Board Thickness：1.6mm
• Board Dimensions: Smallest Size：50*50mm
• BGA-Min Pitch：0.25mm
• Testing Procedures：Visual Inspection ; X-ray Inspection ;Aoi (Automat
• Board Shape：Rectangular ; Round ;Slots and Cut Outs; Complex a
• Lead Time：12-20 Days
• Transport Package：Vacuum+Carton Packing
• Specification：RoHS, ISO9001, UL, SGS
• Trademark：Fastline
• Origin：Shenzhen, China
• HS Code：8534009000
• Production Capacity：20000 Square Meter,Mon

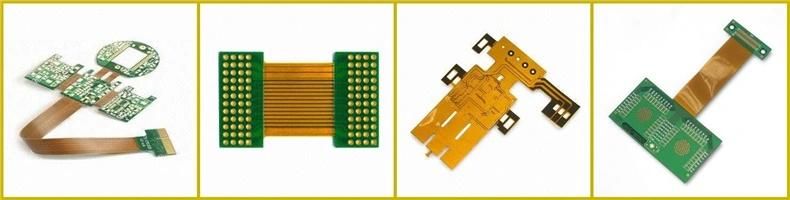

Fastline Circuits Co., LimitedFPC Technology and CapabilitiesMaterialFR4, Polyimide / PolyesterCountsFlex: 1~10L; Rigid-Flex: 2~8LBoard ThicknessMin.0.05mm;  Max. 0.3mmCopper Thickness1/3 oz --- 2 ozCNC Drill Size (Max)6.5mmCNC Drill Size (Min)Flex: 0.15mmHoles Location Tolerance±0.05mmCoverlay Drill Size (Min)0.6mmHole to Coverlay Opening Windows (Min)0.15mmMin Line Width / Spacing0.1/0.1mmCopper Thickness on Hole WallFlex:12-22μmMin Pad Sizeφ0.2mmEtch ToleranceFinished line width tolerance ±20%Pattern Registration Tolerance±0.1mm (Working Panel Size: 250*300mm)Coverlay Registration Tolerance±0.15mmSolder Mask Registration Tolerance±0.2mmSolder Mask to PADNon photosensitive: 0.2mmPhotosensitive: 0.1mmMin. Solder Mask Dam0.1mmMisregistration Tolerance±0.30mm for Stiffener, Adhesive, Glue paperSurface FinishPlating Ni / Au ; Chemical Ni / Au ; OSP
Note: Base on all data received by us and must be complete and problem-free, Lead time is ready to ship time.

PCBA Technology:

1)Professional Surface-mounting and Through-hole soldering Technology.
2)Various sizes like 1206,0805,0603,0201, 1005 components SMT technology.
3) ICT(In-Circuit Test), FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL, CE, FCC, RoHS Approval.
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line.
7) High density interconnected board placement technology capacity.

Types of Assembly: THD (Thru-Hole Device); SMT (Surface-Mount Technology) ; SMT & THD mixed; 2 sided SMT and THD assembly

SMT Line Quantity: 30

SMT Min Pitch-QFP: 0.3mm

BGA-Min Pitch: 0.25mm

Component Package: Reels; Cut tape; Tube and tray; Loose parts and bulk

Board dimensions: Smallest size: 50*50mm ; Largest size: 520*420mm

Board shape: Rectangular; Round; Slots and Cutouts; Complex and Irregular

Board type: Rigid FR-4 ; Rigid-Flex boards ; Aluminum PCB

Assembly process: Lead-Free (RoHS)

Design file format: Gerber RS-274X ; BOM (Bill of Materials) (.xls, .csv, . xlsx)

Testing Procedures: Visual inspection; X-ray Inspection; AOI (Automated Optical Inspection); ICT (In-Circuit Test); Functional testing

Turnaround time: 1-5 workdays for only PCB assembly; 10-16 workdays for full turn-key PCB assembly.




Company Introduction


Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customer's requirements on time, every time!

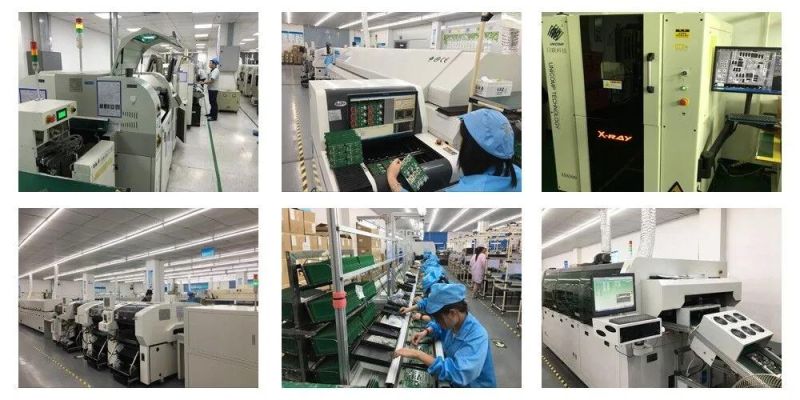

Our Factory

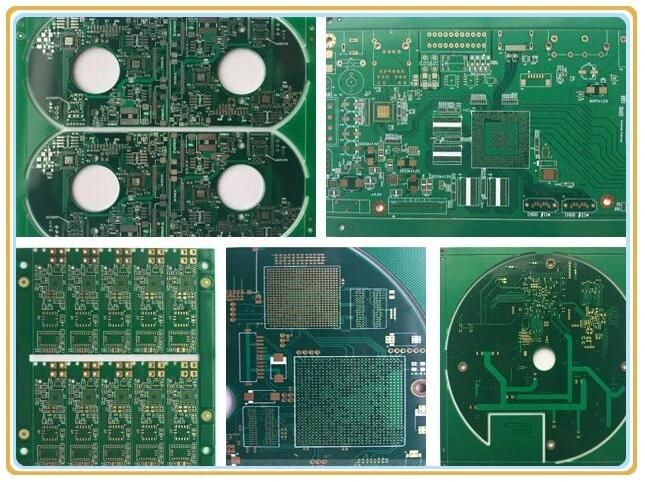

PCB & FR4 PCB

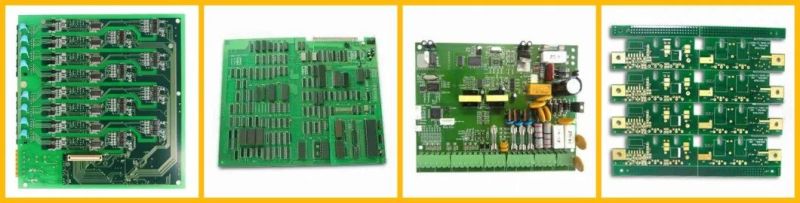

PCBA






FAQ

Q1: Are you a factory or trade company?
A1: We have our own PCB manufacturing & Assembly factory.

Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome.

Q3: what file we should offer?
A3: PCB:Gerber file is better,( Protel,power pcb,PADs file), PCBA : Gerber file and BOM list.

Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5: What any other information should be offered except for file?
A5:Following specifications are needed for quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity

Q6:I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online!

Q7: What is delivery terms and time?
A7: We usually use FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.
